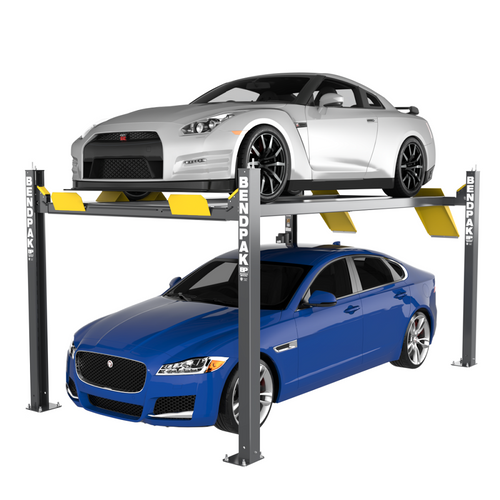

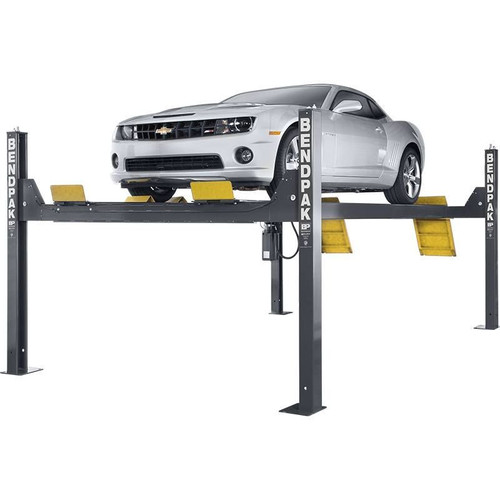

Bendpak HDS-14XT : 14,000 Lb. Capacity - Extended - Limo Style - 82.75" Rise - 227.5" Runway Length

Write a Review
$9,295.00
SKU: 5175624
Capacity: 14,000
Design: Four-Post Lift
Type: Heavy Duty
Adding to cart… The item has been added
Description

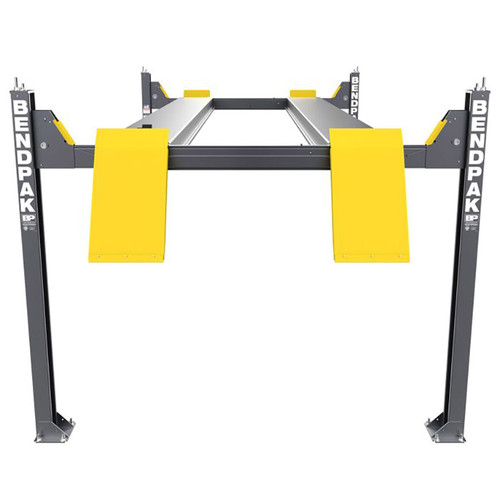

High-Rise Four-Post Lift / Extended Runways

Boost your shop's productivity with the BendPak HDS-14XT four-post lift, offering unmatched room and comfort thanks to its taller rise height and longer runways. Mechanics of all heights will appreciate working comfortably under limousines, SUVs, and extended trucks, significantly enhancing efficiency and reducing fatigue.

Specifications

Capacity

Lifting Capacity*
14,000 lbs. (6,350 kg)
*Max Capacity / Front Axle
7,000 lbs. (3,175 kg)
*Max Capacity / Rear Axle
7,000 lbs. (3,175 kg)

Rise

A - Min. Runway Height:
7.5" (191 mm)
B - Max. Rise:
82.75" (2,104mm)
C - Max. Lifting Height:
89.5" (2,275mm)
Time to Full Rise:
90 seconds

Outside Dimensions

D - Overall Width:
130" (3,302 mm)
E - Outside Length:
243" (6,172 mm)
F - Overall Length:
272" (6,908 mm)
G - Height of Columns:
104" (2,643 mm)

Inside Dimensions

H - Width Between Columns:
120" (3,048 mm)
I - Drive-Thru Clearance:
80.75" (2,052 mm)

Runways

J - Runway Width:
20" (508 mm)
K - Length of Runways:
227.5" (5,778 mm)
L - Width Between Runways:
34.5" (876 mm) or 41.5" (1,054 mm)
M - Runway Centerline:
57.5" (1,461 mm) or 64.5" (1,638 mm)
N - Outside Edge of Runways:
77.5" (1,969 mm) or 84.5" (2,146 mm)

Minimum Wheelbase

Rated Capacity:
160" (4,064 mm)
75% Capacity:
140" (3,556 mm)
50% Capacity:
115" (2,921 mm)
25% Capacity:
95" (2,413 mm

Locking

Locking Positions:
18
Lock Spacing:
Every 4" (102 mm)

Power Unit

Motor:
220 VAC / 60 Hz / 1 Ph
Noise:
45 dB

Shipping

Weight:
2,740 lbs. (1,242 kg)
Dimensions:
239" x 22" x 29" (6,070 mm x 558 mm x 737 mm)
