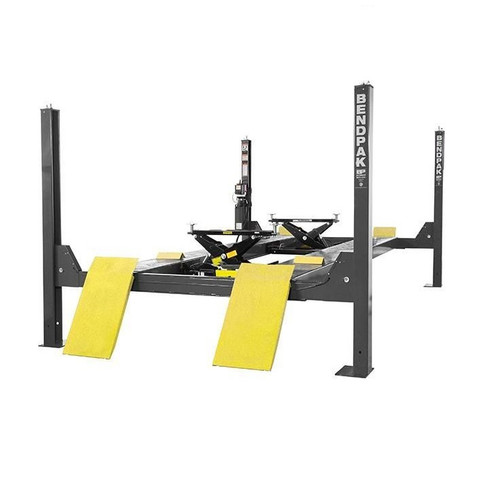

BendPak HDS-14 : 14,000 LB 4-Post Lift

Write a Review
$8,595.00
SKU: 5175170
Capacity: 14000
Design: Four-Post
Type: Closed-Front
Adding to cart… The item has been added
Description
14,000-lb. Capacity / Four-Post Lift / Standard Length / BendPak's HDS-14 four-post lift is a whole new breed of rugged. It features superior components that work better, are built to last and increase operator safety. If your service bay needs to get under heavy-duty, oversized vehicles on a daily basis, this lift is what you need.
Specifications

Capacity

Lifting Capacity*
14,000 lbs. (6,350 kg)
*Max Capacity / Front Axle
7,000 lbs. (3,175 kg)
*Max Capacity / Rear Axle
7,000 lbs. (3,175 kg)

Rise

A - Min. Runway Height:
7.5" (191 mm)
B - Max. Rise:
70" (1,778 mm)
C - Max. Lifting Height:
77.5" (1,969 mm)
Time to Full Rise:
60 seconds

Outside Dimensions

D - Overall Width:
130" (3,302 mm)
E - Outside Length:
213" (5,410 mm)
F - Overall Length:
242" (6,147 mm)
G - Height of Columns:
92" (2,337 mm)

Inside Dimensions

H - Width Between Columns:
120" (3,048 mm)
I - Drive-Thru Clearance:
98" (2,489 mm)

Runways

J - Runway Width:
20" (508 mm)
K - Length of Runways:
197.5" (5,017 mm)
L - Width Between Runways:
34.5" (876 mm) or 41.5" (1,054 mm)
M - Runway Centerline:
57.5" (1,461 mm) or 64.5" (1,638 mm)
N - Outside Edge of Runways:
77.5" (1,969 mm) or 84.5" (2,146 mm)

Minimum Wheelbase

Rated Capacity:
140" (3,556 mm)
75% Capacity:
120" (3,048 mm)
50% Capacity:
100" (2,540 mm)
25% Capacity:
80" (2,032 mm)

Locking

Locking Positions:
15
Lock Spacing:
Every 4" (102 mm)

Power Unit

Motor:
220 VAC / 60 Hz / 1 Ph
Noise:
45 dB

Shipping

Weight:
2,606 lbs. (1182 kg)
Dimensions:
209" x 22" x 29" (5,309 mm x 558 mm x 737 mm)
