Bendpak HD-9SWX-E : 9,000 Lb. Capacity - Extra Wide - 82" Rise - 248” Overall Width

Write a Review
$14,495.00
SKU: 5175815
Capacity: 9000
Design: Four-Post
Type: Parking
Adding to cart… The item has been added
Description

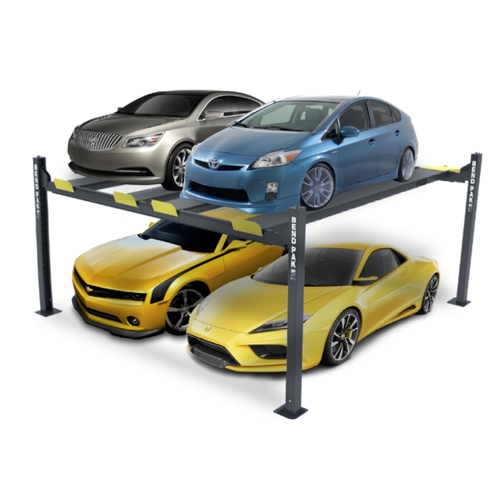

 Four-Post Lift / Dual Platform / Super Wide / Extended-Length

HD-9SWX is ideal for anyone who wants a little extra standing room under their lift. Plus, the runways are 24" longer than our standard-length HD-SW. Park up to four cars, trucks and SUVs, and enjoy servicing two raised vehicles in a single lift.

Specifications

Capacity

Lifting Capacity*
9,000 lbs. (4,082 kg)
*Max Capacity / Front Axle
4,500 lbs. (2,041 kg)
*Max Capacity / Rear Axle
4,500 lbs. (2,041 kg)

Rise

A - Min. Runway Height:
7" (178 mm)
B - Max. Rise:
82" (2,083 mm)
C - Max. Lifting Height:
89" (2,261 mm)
Time to Full Rise:
65 seconds

Outside Dimensions

D - Overall Width:
248" (6,299 mm)
E - Outside Length:
198" (5,029 mm)
F - Overall Length:
242.5" (6,159 mm)
G - Height of Columns:
102" (2,591 mm)

Inside Dimensions

H - Width Between Columns:
192" (4,877 mm)
I - Drive-Thru Clearance:
178" (4,521 mm)

Runways

J - Runway Width:
19" (483 mm)
K - Length of Runways:
188" (4,775 mm)
L - Width Between Runways:
34.25" (870 mm) or 41" (1,041 mm)
M - Runway Centerline:
56.25" (1,429 mm) or 62.75" (1,594 mm)
N - Outside Edge of Runways:
75.25" (1,911 mm) or 81.75" (2,076 mm)

Minimum Wheelbase

Rated Capacity:
135" (3,429 mm)
75% Capacity:
115" (2,921 mm)
50% Capacity:
95" (2,413 mm)
25% Capacity:
80" (2,032 mm)

Locking

Locking Positions:
17
Lock Spacing:
Every 4" (102 mm)

Power Unit

Motor:
220 VAC / 60 Hz / 1 Ph
Noise:
45 dB

Shipping

Weight:
3,038 lbs. (1378 kg)
Dimensions:
205'' x 22'' x 51'' (5,207 mm x 558 mm x 1,282 mm)
