Bendpak BB-2-MET-503 : Man Tube Bender - Metric Tooling Package

Write a Review
$12,595.00
SKU: 5115120
Type: Manual
Motor: 208-460V
Tool Package: Deluxe Metric
Ph: 3
Adding to cart… The item has been added

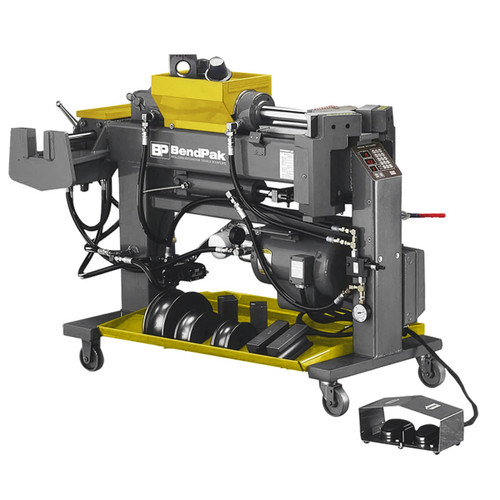

The BendPak BB-2-MET-503 Blue-Bullet Manual Tube Bender is a heavy-duty hydraulic machine designed for professional exhaust fabrication and metric-diameter tubing applications. Equipped with a 5 HP motor, high-speed 4 GPM hydraulic pump, and Deluxe Metric Tooling Package, it delivers precise and dependable bending performance.

Featuring dual end-finishing units, quick-release bending dies, a high-speed clampless swager, and an internal expander, this machine simplifies bending, flaring, expanding, and swaging operations. Its rugged welded-steel frame and convenient controls make it ideal for automotive repair shops, muffler shops, and fabrication facilities.

Key Features:

  • Manual Hydraulic Operation: Provides precise control for exhaust tube bending.
  • Deluxe Metric Tooling Package: Supports compatible metric-diameter tubing.
  • Powerful 5 HP Motor: Delivers reliable hydraulic performance.
  • 4 GPM Hydraulic Pump: Supports fast and efficient operation.
  • Dual End-Finishing Units: Enable tube flaring and expanding.
  • Quick-Release Bending Dies: Reduce setup and tooling change time.
  • High-Speed Clampless Swager: Simplifies tube swaging operations.
  • Internal Expander: Supports accurate tubing expansion.
  • Heavy-Duty Steel Frame: Provides strength and durability.
  • Precision-Ground Bending Heads: Ground to within 0.002" for accurate bending.
  • Hydraulic Pressure Gauges: Allow convenient pressure monitoring.
  • Industrial-Grade Casters: Make workshop repositioning easier.
  • Heat-Treated Tooling: Designed for extended service life.

Technical Highlights:

  • Brand: BendPak
  • SKU: BB-2-MET-503
  • Product Type: Manual Hydraulic Tube Bender
  • Tooling Package: Deluxe Metric Tooling Package
  • Motor Power: 5 HP
  • Hydraulic Pump Flow: 4 GPM
  • Frame Construction: 6" x 6" x 3/8" Welded Steel
  • Bending Head Precision: 0.002"
  • Barrel Shaft Diameter: 2.5 Inches
  • Hydraulic Hose Diameter: 1/2 Inch
  • Optional Accessory: 180° Bending Die

The BendPak BB-2-MET-503 combines powerful hydraulic performance, precision bending, and versatile metric tooling, making it an excellent solution for professional exhaust fabrication and automotive tubing applications.

Overview

Bending Controls:
Manual
Expander Controls:
Manual
Frame Style:
Double-Ended Expander
Max. Tube Capacity:
3" (76 mm) .095 wall

Bending

Max. Bending Radius:
5" (127 mm)
Min. Bending Radius:
3.3" (89 mm)

Hydraulics

Top Cylinder Force:
60,000 lbs. (27,216 kg)
Hydraulic Filter:
Canister
Motor:
5 HP / 208-230 VAC / 60 Hz / 1 PH

Die Pack

Standard:
1.5", 1.75", 1.625", 2", 2.25", 2.5" (302)

Dimensions

Width:
42" (1,067 mm)
Depth:
62" (1,575 mm)
Height:
31" (787 mm)

Shipping

Weight:
1,364
Dimensions:
70" x 32" x 47" (1,778 mm x 812 mm x 1,206 mm)
