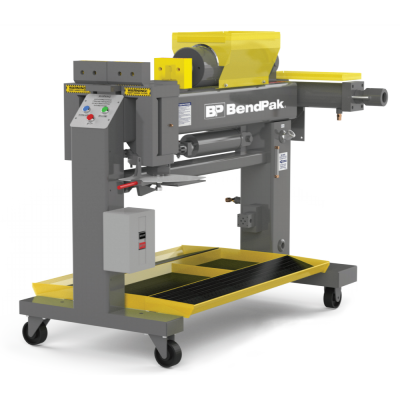

BendPak 1302BAS-DLX-601 : SA Tube Bender, 302 Tooling Pkg

Write a Review
$12,895.00
SKU: 5115180
Type: Semi-Automatic
Motor: 208-230V
Tool Package: Deluxe 302
Ph: 1
Adding to cart… The item has been added
Description
The BendPak 1302BAS series is comprised of powerful automatic exhaust pipes benders designed to expedite the bending process. A convenient, space-saving, side-loading swager, dual-function, end-finishing unit for extremely precise OE expansions and flares.
  • 2 separate end-finishing units at rear for all necessary flaring and expanding
  • 3-button control for automatic or manual bending operations
  • Comes complete with quick release bending and finishing dies
  • Includes high-speed clampless swager and internal expander
  • Easy-to-use drop-in collar makes swaging operations quick and efficient
  • Twist-lock tooling
  • Integrated power-relief control valve
  • Pass-through cylinder stem passes completely through the primary frame
  • Rigid 6" x 6" x 3/8" welded-steel tube frame
  • Commercial-grade hydraulic cylinders
  • All cylinders feature chrome-molly shafts, conforming to ANSI 92.2 standards
  • Quick-release bending dies for reduced set-up times
  • Bending heads precision grounded to within .002"
  • Enclosed controls keep your bending area clutter-free
  • 2.5" oversized barrel shafts for maximum dependability and minimum maintenance
  • Standard grease fittings allow for simple lubrication
  • NEMA rated on / off switch box incorporates overload relays that automatically disrupt power supply should an unforeseen over-current situation occur
  • Pressure gauges let you know exactly what the system pressures are at all times
  • Industrial grade casters help you easily move the bender around your shop
  • Remote foot operated controls for added long-distance control
  • Adjustable pressure valve located right up front
  • One piece barrel ensures that the bending gates stay perfectly aligned with the ram
  • Heat-treated tooling for greater service life
  • Convenient tool trays keep your tooling organized
  • Strong, 5 HP energy efficient motor delivers maximum performance
  • Direct-drive, high-speed, 4 gpm pump
  • Single enclosed bottom cylinder applies pressure evenly to the back gates and, because it is hidden, does not interfere with the tubing
  • Large capacity fluid reservoir keeps the hydraulic oil running cooler and prevents contamination
  • Canister oil filter in the hydraulic system keeps the oil nice and clean
  • Oil sight-gauges allow you to visually inspect oil levels
Specifications

Overview

Bending Controls:
Semi-Automatic / 3-Button
Expander Controls:
Manual
Frame Style:
Double-Ended Expander
Max. Tube Capacity:
3" (76 mm) .095 wall

Bending

Max. Bending Radius:
5" (127 mm)
Min. Bending Radius:
3.3" (89 mm)

Hydraulics

Top Cylinder Force:
60,000 lbs. (27,216 kg)
Hydraulic Filter:
Canister
Motor:
5 HP / 208-230 VAC / 60 Hz / 1 PH

Die Pack

Standard:
1.5", 1.75", 1.875", 2", 2.25", 2.5" (302)

Dimensions

Width:
41" (1,041 mm)
Depth:
64" (1,626 mm)
Height:
26" (660 mm)

Shipping

Weight:
1,362
Dimensions:
70" x 32" x 47" (1,778 mm x 812 mm x 1,206 mm)
