BendPak APEX AR-911-6-LR : 96" Lightweight Foam 4-Post Ramp Kit - 11" Lift - 6° Approach Angle - Set of 2

Write a Review
$1,375.00
SKU: 5174170
Adding to cart… The item has been added
Description

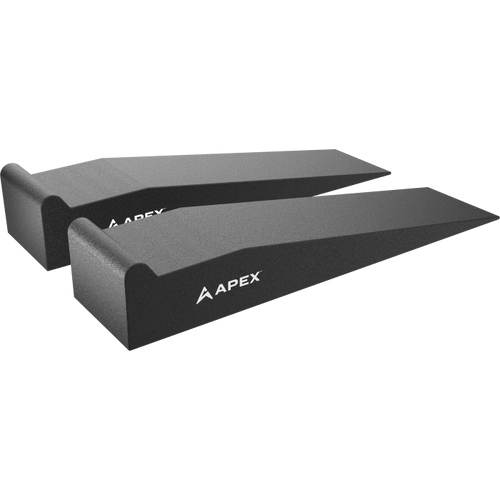

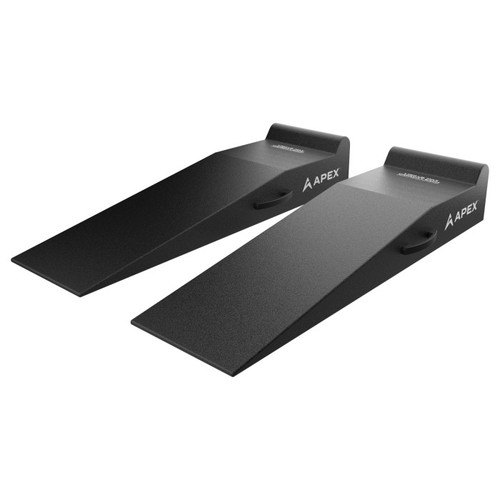

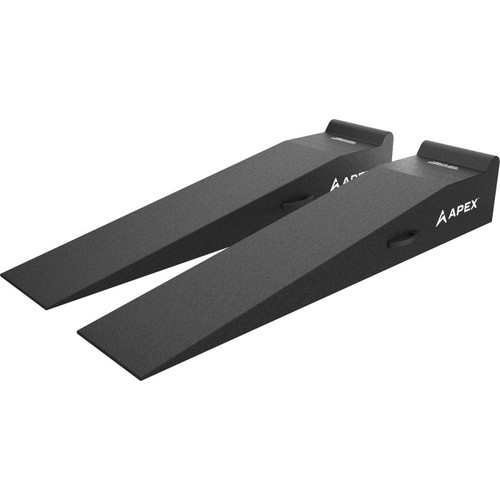

The 96" Lightweight Foam 4-Post Ramp Kit from APEX is the ultra light, hook nose upgrade made specifically for BendPak HD-973P and HD-973PX lifts. Each 96 inch ramp delivers 11 inches of lift with a shallow 6 degree approach angle that low cars can actually climb without bumper drama. Built from high density structural foam with a rugged textured coating and a reinforced hook nose, these ramps are engineered to drop into the HD-973P / HD-973PX ramp pockets as a direct replacement for the factory steel ramps. Once you switch to APEX, you will not want to wrestle stock ramps again.

Specifications
Product type
Lightweight foam 4-post lift ramp kit
Load capacity per ramp
1,750 lb (approx. 794 kg)
Load capacity per pair
3,500 lb (approx. 1,588 kg)
Individual item weight (ea)
13.5 lb (approx. 6 kg)
A - Length
96 in (2,438 mm)
B - Width
19 in (483 mm)
C - Height
11 in (279 mm)
D - Hook Nose (W x H)
14 in x 3.25 in (356 mm x 83 mm)
E - Approach angle
6 degrees
Hook style
Reinforced hook nose for drop-in four-post lift ramp pockets
Core material
High density expanded polystyrene (EPS) structural foam
Coating material
Textured polyurea elastomer
Configuration
Set of 2 hook nose four post lift ramps
Intended use
Drive-on ramps for four-post vehicle lifts
Compatibility
BendPak HD-973P and HD-973PX four-post parking lifts only
Shipping weight
33 lb (approx. 15 kg)
