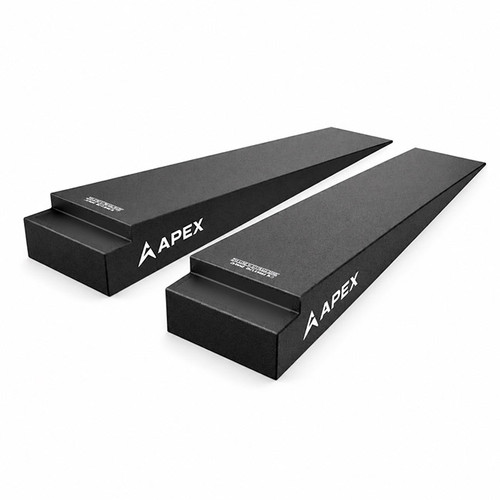

BendPak APEX AR-610-95-GR : 72" Lightweight Foam Garage Ramp Kit - 10" Lift - 9.5° Approach Angle - Set of 2

Write a Review
$725.00
SKU: 5174162
Adding to cart… The item has been added
Description
The 72" Lightweight Foam Garage Ramp Kit from APEX is for people who want true undercar access without installing a full lift. Each 72 inch ramp delivers 10 inches of stable lift with a 9.5 degree approach angle that performance cars and many lowered setups can still climb with confidence. A solid structural foam core feels rock steady under the tires, while a textured, non marring coating grips floors and tread. Drive on once, chock, and you have serious working height in an ordinary garage.

Features & Benefits

• Gives you the tallest working height in the APEX garage ramp lineup for maximum undercar access
• 72 inch run with a 9.5 degree approach angle that performance and many lowered cars can still climb confidently
• Solid, closed cell construction spreads load, resists permanent compression, and feels planted under tire
• Protects against abrasion and chemicals while gripping tires and common garage surfaces
• Long ramps without the dead weight of steel, easy for a single person to move and position
• Safe on epoxy, sealed concrete, and decorative floors, with no metal to rust or gouge surfaces
• Long base and broad contact area deliver a steady platform for serious underbody work
• Designed specifically as a drive on service solution, not a repurposed storage block
Specifications
Product type
Lightweight foam garage ramp kit
Load capacity per ramp
1,750 lb (approx. 794 kg)
Load capacity per pair
3,500 lb (approx. 1,588 kg)
Individual item weight (ea)
12 lb (approx. 5.5 kg)
A - Length
72 in (1,829 mm)
B - Width
14 in (356 mm)
C - Height
12 in (305 mm)
D - Tire Rest Height
10 in (254 mm)
E - Tire Rest Length
10.75 in (273 mm)
F - Approach angle
9.5 degrees
Material - Core
High-density EPS structural foam
Material - Coating
Textured polyurea elastomer
Configuration
Set of 2 Garage Ramps
Intended use
Drive on lift for maintenance, inspection, repair
Shipping weight
25 lb (approx. 11 kg)
