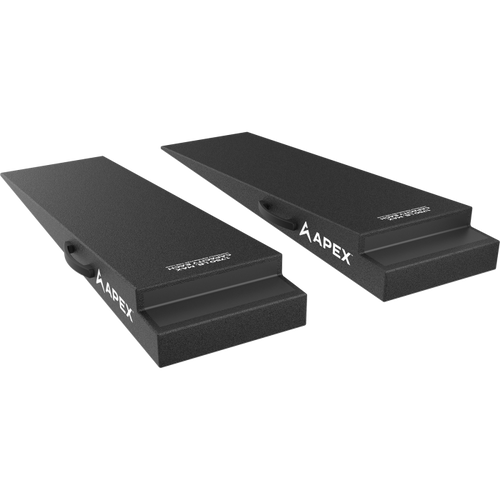

BendPak APEX AR-45-57-LR : 48" Lightweight Foam 4-Post Ramp Kit - 5" Lift - 5.7° Approach Angle - Set of 2

Write a Review
$356.00
SKU: 5174172
Adding to cart… The item has been added

The 48" Lightweight Foam 4 Post Ramp Kit from APEX is the ultra convenient, hook nose replacement for the heavy steel or aluminum ramps that came with your four post lift. Each 48 inch ramp delivers 5 inches of lift with a gentle 5.7 degree approach angle that is far friendlier for lower cars and performance vehicles. Designed for Bendpak Four post lifts these APEX ramps are so light and easy to move you will never want to wrestle factory ramps again.

Product type
Lightweight foam 4-post lift ramp kit
Load capacity per ramp
1,750 lb (approx. 794 kg)
Load capacity per pair
3,500 lb (approx. 1,588 kg)
Individual item weight (ea)
11 lb (approx. 5 kg)
A - Length
48 in (1,219 mm)
B - Width
19 in (483 mm)
C - Height
5 in (127 mm)
D - Hook Nose (W x H)
14 in x 3.25 in (356 mm x 83 mm)
E - Approach angle
6 degrees
Hook style
Reinforced hook nose for drop-in four-post lift ramp pockets
Core material
High density expanded polystyrene (EPS) structural foam
Coating material
Textured polyurea elastomer
Configuration
Set of 2 hook nose four post lift ramps
Intended use
Drive-on ramps for four-post vehicle lifts
Compatibility
BendPak four-post lifts
Shipping weight
22 lb (approx. 10 kg)
