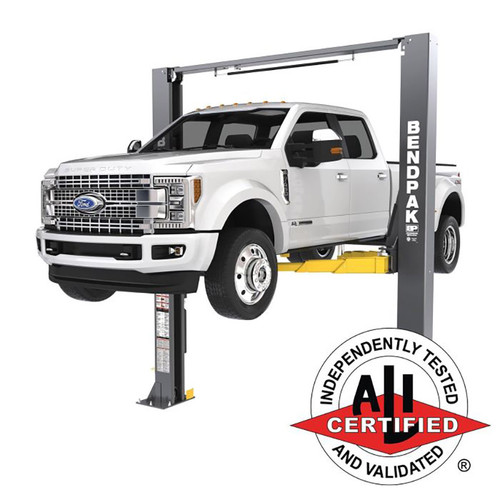

BendPak 10APX Pro Package : 10,000 lb Capacity High-Rise 2-Post Car Lift with WSA-100 Air-Electric Workstation and Lifting Adapters

Write a Review
$7,845.00
SKU: 5175648
Adding to cart… The item has been added

The BendPak 10APX Pro Package 2-Post Car Lift delivers exceptional lifting performance, versatility, and safety with a 10,000 lb lifting capacity, high-rise design, and advanced Bi-Metricâ„¢ arm technology. This complete package includes the WSA-100 Air-Electric Workstation, frame cradle pads, medium adapters, and tall adapters, providing a convenient solution for professional automotive servicing.

Designed with four triple-telescoping arms, an expandable top beam, and double-telescoping screw pads, the 10APX offers flexible vehicle positioning and increased working clearance. Its dual hydraulic direct-drive cylinders and electric/hydraulic HVLP power system deliver dependable lifting performance, while the durable construction supports demanding workshop operations.

Equipped with automatic arm restraints, a single-point safety release, and safety locks in each column, the 10APX Pro Package combines safety with practical functionality. The included WSA-100 workstation provides convenient access to compressed air and electrical power, making this package ideal for automotive repair shops, dealerships, and professional service centers.

Key Features:

  • 10,000 lb Lifting Capacity: Provides reliable lifting performance for compatible passenger cars, SUVs, and light-duty trucks.
  • High-Rise 2-Post Design: Offers additional overhead clearance for professional vehicle servicing.
  • Expandable Top Beam: Accommodates wide or narrow drive-through configurations.
  • Bi-Metricâ„¢ Arm Technology: Provides versatile arm positioning for different vehicle configurations.
  • Four Triple-Telescoping Arms: Offer flexible reach and positioning for various lifting points.
  • Double-Telescoping Screw Pads: Provide adjustable contact positioning for different vehicles.
  • Drop-End Arms: Offer a lower pad height for convenient vehicle positioning.
  • Dual Hydraulic Direct-Drive Cylinders: Deliver powerful and dependable lifting performance.
  • Electric/Hydraulic HVLP Power System: Supports efficient hydraulic lifting operation.
  • Single-Point Safety Release: Allows convenient operation of the safety locking system.
  • Padded Overhead Safety Shutoff Bar: Provides overhead contact protection during lifting.
  • Safety Locks in Each Column: Positioned at 3-inch intervals for secure vehicle support.
  • Automatic Arm Restraints: Designed to withstand more than 2,000 lb of side force.
  • Oversized 53" and 59" Carriages: Provide additional strength and durability.
  • Dura-Glide UHMW Polyethylene Bearing System: Features self-lubricating components for smooth operation.
  • High-Strength Equalizing Cable: Features a 3/8-inch (10 mm) multi-strand galvanized steel cable.
  • Oversized Cable Sheaves: Help reduce cable fatigue.
  • Durable Powder Coat Finish: Helps protect against wear and corrosion.
  • ALI Certified: Identified as ALI certified in the supplied product details.

WSA-100 Air-Electric Workstation Features:

  • Four 110V GFI Outlets: Equipped with 20-amp industrial GFI protection.
  • Dual Air Outlets: Includes lubricated air service for pneumatic tools and a separate outlet for tire inflation.
  • Convenient Outlet Placement: Electrical outlets are positioned above the air service to help prevent moisture damage and hose tangling.
  • Air Regulator and Filter: Supports convenient compressed-air management.
  • Integrated Oiler: Provides lubrication for compatible pneumatic tools.
  • Pressure Gauge: Allows convenient monitoring of air pressure.
  • Nickel-Plated Ball Valve: Provides convenient air shutoff.
  • Storage Hooks: Offer organized storage for hoses and tools.
  • Easy Maintenance: Accessible filter element and lubricator filler port.
  • Durable Powder-Coated Finish: Provides long-lasting protection.
  • Easy Installation: Designed to adapt to compatible two-post and four-post lifts.

Included Package Accessories:

  • WSA-100 Air-Electric Workstation: 1 unit
  • Frame Cradle Pads: Set of 4, 60 mm pin
  • Medium Adapters: Set of 4, 2.5-inch height, 60 mm pin
  • Tall Adapters: Set of 4, 60 mm pin

The BendPak 10APX Pro Package is a comprehensive lifting solution for automotive professionals seeking 10,000 lb lifting capacity, high-rise clearance, advanced safety technology, and convenient air-electric workstation access. With its versatile lifting arms, durable construction, and included accessories, this package delivers reliable performance and improved efficiency for demanding automotive service environments.

Capacity

Lifting Capacity*
10,000 lbs. (4,536 kg)
*Max Capacity / Front Axle
5,000 lbs. (2,268 kg)
*Max Capacity / Rear Axle
5,000 lbs. (2,268 kg)

Rise

A - Rise:
75" (1,905 mm)
B - Rise + Pad Only:
79.5" (2,007 mm)
C - Rise + Pad + 63 mm Adapter:
89" (2,261 mm)
D - Min. Height + Pad:
4" (102 mm)
Time to Full Rise:
45 seconds

Outside Dimensions

E - Height Overall:
157" (3,988 mm)
F - Width Overall:
135" (3,429 mm) or 145" (3,683 mm)
G - Outside Columns:
127" (3,226 mm) or 137" (3,480 mm)

Inside Dimensions

H - Inside Columns:
108.25" (2,750 mm) or 118.25" (3,004 mm)
I - Drive-Thru Clearance:
92" (2,337 mm) or 102" (2,591 mm)

Arms & Pads

K - Front Arm Reach: (MIN)
22" (559 mm)
K - Front Arm Reach: (MAX)
47.5" (1,207 mm)
L - Rear Arm Reach: (MIN)
29.5" (749 mm)
L - Rear Arm Reach: (MAX)
57" (1,448 mm)
Screw Pad Adjustment:
2" (51 mm)
Max Load Per Arm
2,500 lbs. (1,134 kg)

Power Unit

Motor:
220 VAC, 60 Hz, 1 Phase
Noise:
<70 dB
