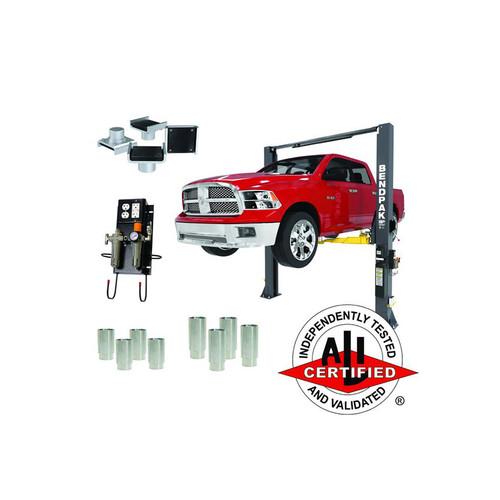

BendPak 10AP-168 Pro Package : Two Post Car Lift - 10,000-Lb Capacity - 168" Extended Height

Write a Review
$7,545.00
SKU: 5175644
Adding to cart… The item has been added
Description

10AP-168

  • Durable powder coat finish
  • Expandable top beam accommodates wide or narrow drive-thru configurations
  • Double-telescoping screw pads offer increased versatility
  • Padded overhead safety shutoff bar
  • Exclusive Bi-Metric™ arm design for more versatile arm positioning
  • Single-point safety release
  • Drop-end arms provide a lower pad height
  • Dual hydraulic direct-drive cylinders
  • Oversized 53" & 59" tall carriages for superior strength and durability
  • Electric / hydraulic HVLP power system
  • Self-lubricating dura-glide UHMW polyethylene bearing system
  • Safety locks in each column spaced every 3"
  • Automatic arm restraints withstand over 2000-pounds of side force
  • 3/8"(10mm) High-strength multi-strand galvanized steel equalizing cable
  • Oversized cable sheave diameter reduces cable fatigue
  • Four triple-telescoping arms
  • ALI certified

WSA-100

  • Easy to install
  • Adapts to any two-post lift and four-post lift
  • Electrical outlets equipped with 20 amp industrial GFI protection
  • Electrical outlets located above the air service to prevent moisture damage and tangling
  • Air service through 2 outlets: one lubricated for tire inflation and one for pneumatic tools
  • Air service filter element and lubricator filler port are easily accessible
  • Nickel-plated ball valve shutoff
  • Powder-coated finish for durability and long life
  • Four 110V GFI outlets
  • Oiler
  • Air supply
  • Pressure gauge
  • Storage hooks for hose and tools
  • Regulator / filter
  • Air inlet

Frame Cradle Pads

  • Set of 4
  • 60mm pin

Medium Adapter 60mm

  • Set of 4
  • 2.5”

Tall Adapter 60mm

  • Set of 4
  • 5”
Specifications

Capacity

Lifting Capacity*
10,000 lbs. (4,536 kg)
*Max Capacity / Front Axle
5,000 lbs. (2,268 kg)
*Max Capacity / Rear Axle
5,000 lbs. (2,268 kg)

Rise

A - Rise:
72.25" (1834.7 mm)
B - Rise + Pad Only:
79.5" (2,007 mm)
C - Rise + Pad + 63 mm Adapter:
89" (2,261 mm)
D - Min. Height + Pad:
4" (102 mm)
Time to Full Rise:
45 seconds

Outside Dimensions

E - Height Overall:
168" (4,267 mm)
F - Width Overall:
135" (3,429 mm) or 145" (3,683 mm)
G - Outside Columns:
127" (3,226 mm) or 137" (3,480 mm)

Inside Dimensions

H - Inside Columns:
108.25" (2,750 mm) or 118.25" (3,004 mm)
I - Drive-Thru Clearance:
92" (2,337 mm) or 102" (2,591 mm)

Arms & Pads

K - Front Arm Reach: (MIN)
22" (559 mm)
K - Front Arm Reach: (MAX)
47.5" (1,207 mm)
L - Rear Arm Reach: (MIN)
29.5" (749 mm)
L - Rear Arm Reach: (MAX)
57" (1,448 mm)
Screw Pad Adjustment:
2" (51 mm)
Max Load Per Arm
2,500 lbs. (1,134 kg)

Power Unit

Motor:
220 VAC, 60 Hz, 1 Phase
Noise:
<70 dB
