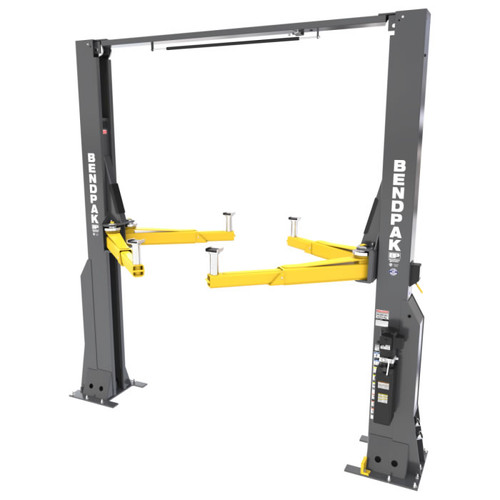

Bendpak 12APX : Two Post Car Lift - 12,000-Lb Capacity - High Rise

Write a Review
$10,495.00
SKU: 5175556
Capacity: 12000
Design: Two-Post
Overall Height: 169''
Overall Width: 156''
Configuration: Symmetric
Adding to cart… The item has been added
Description
The BendPak 12APX is a robust lift designed to ease mechanics' workloads. With a towering height of 169 inches and a 12,000-lb. lifting capacity, it offers ample space and power. Part of our innovative AP Series, it's tailored for modern electric vehicles, featuring advanced Bi-Metricâ„¢ arms for efficient lifting. With safety features like the Automatic Swing Arm Restraint System and innovative safety lock system, it ensures secure operation. Plus, its versatile design and Low-Proâ„¢ arms make it ideal for a range of vehicles, providing precise and safe lifting solutions.

12K LBS. Lifting Capacity
  • Bi-Metricâ„¢ Lifting
  • Low-Proâ„¢ Triple-Telescoping Arms
  • Performance Guaranteed
  • Adaptable Design: Symmetric or Asymmetric
  • Automatic Swing Arm Restraint System (ASARS)
  • Durable Powder Coat Finish
  • Double-Telescoping Screw Pads
  • Padded Overhead Safety Shutoff Bar
  • Exclusive Bi-Metricâ„¢ Arm Design
  • Single-Point Safety Release
  • Drop-End Arms
  • Dual Hydraulic Direct-Drive Cylinders
  • Electric/Hydraulic HVLP Power System
  • Self-Lubricating Dura-Glide UHMW Polyethylene Bearing System
  • Safety Locks in Each Column
  • Heavy-Duty Aircraft-Quality Equalizer Cables
  • Oversized Cable Sheave Diameter
  • Four-Triple Telescoping Arms

Accessories Included:

  • 2.5" Medium Adapters (Set of 4)
  • 5" Tall Adapters (Set of 4)
  • Adapter Holders (Set of 2)
  • Drop-In Cradle Pads (Set of 4)

Optional Accessories:

  • Quick-Fit Pinch-Weld Pucks (Set of 4)
  • Quick-Fit Pinch-Weld Pads (Set of 4)
  • Wide Frame Cradle Adapters (Set of 2)
  • 2" Low Adapter (Set of 4)
  • Steel Lift Pads (Set of 4)
  • Replacement Urethane Pads (Set of 4)
  • Screw Pads (Set of 4)





Specifications

Model 12APX

Lifting Capacity
12,000 lbs. / 5,443 kg
Max. Capacity — Front Axle
6,000 lbs. / 2,722 kg
Max. Capacity — Rear Axle
6,000 lbs. / 2,722 kg
Max. Load per Lift Arm
3,000 lbs. / 2,268 kg
A – Max. Lifting Height w/ Pad (Top Lock)*
79.25 in. / 2,015 mm
B – Max. Lifting Height w/ Adapters**
87.75 in. / 2,229 mm
C – Max. Rise (No lock engaged)
76 in. / 1,932 mm
D – Min. Height w/ Pad
4.25 in. / 108 mm
E – Overall Height
169 in. / 4,294 mm
F – Width Overall
156 in. / 3,959 mm
G – Outside Posts
143 in. / 3,633 mm
H – Inside Posts
120 in. / 3,047 mm
I – Drive-Thru Width
103 in. / 2,619 mm
J – Floor to Top Switch
163.5 in. / 4,154 mm
K – Rear Arm Reach (min. – max.)***
29.25 in. – 60 in. / 745 mm – 1,524 mm
L – Front Arm Reach (min. – max.)***
26 in. – 55.25 in. / 660 mm – 1,404 mm
M – Base Plate Width
25 in. / 634 mm
Operating Pressure at Maximum Load
2,220 psi
Time to Full Rise
≈ 68 seconds
Motor****
230 VAC, 50/60 Hz, 1 Ph, 5 HP, approx. 19.5 Amps
Hydraulic Fluid Required
3.6 gallons / 13.6 Liters
Operating Temperature
41° to 104° F / 5° to 40°C
Sound Pressure
81 dB peak level
