Apex 5176250 : AL9LC Two Post Car Lift - 9,000-Lb Capacity - Floorplate

Write a Review
$3,895.00
SKU: 5176250
Capacity: 9000
Design: Two-Post
Configuration: Asymmetric
Type: Low Ceiling
Color: Black
Overall Height: 109.5"
Overall Width: 137.25"
Inside Columns: 113.25
Country of Origin: Asia
Adding to cart… The item has been added
Description

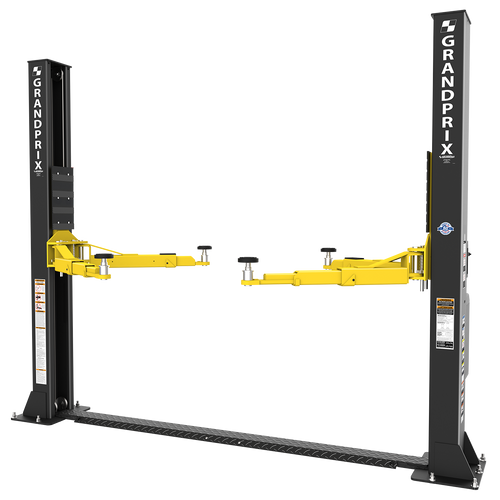

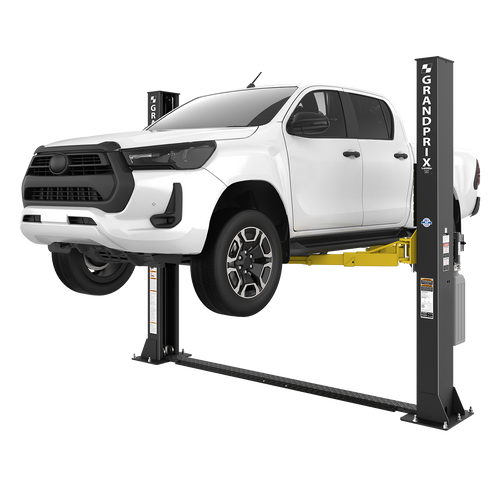

The GrandPrix GP-9LC is a rugged 9,000-lb. capacity two-post lift built for low-ceiling garages and tough shop conditions. Its floorplate design removes overhead obstructions, while symmetric and asymmetric arm configurations provide flexible vehicle access. A proven chain-over system with industrial-grade leaf chain and heavy-duty rollers delivers smooth, reliable lifting backed by serious durability. With automatic safety locks, oversized base plates, and rock-solid construction, the GP-9LC is built to work as hard as you do.

  • 9,000-lb. lifting capacity
  • Symmetric and asymmetric arm design for enhanced versatility

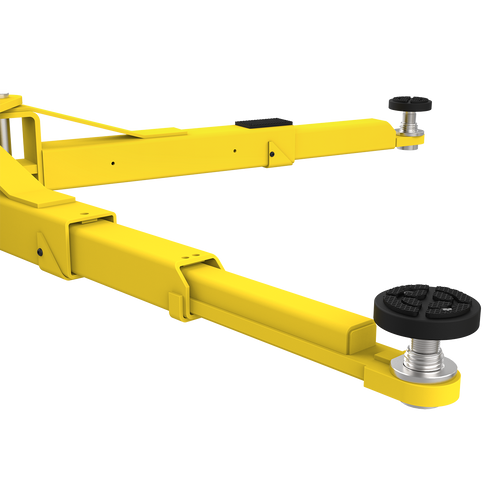

  • Triple-telescoping front arms & dual-stage extended rear arms

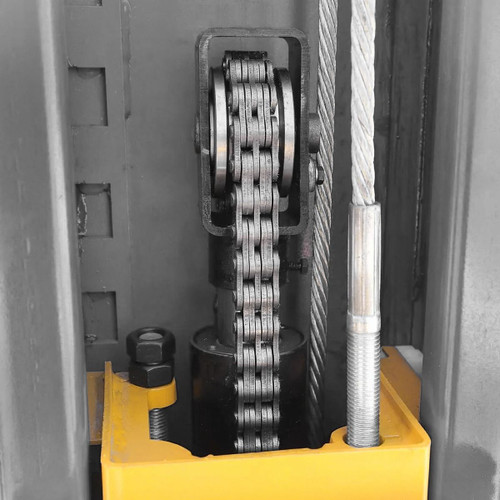

  • Heavy-duty, high-strength leaf chain engineered for reliable lifting power and durability
  • Heavy-duty 6" x 6" tubular steel carriage for maximum strength
  • Electric-hydraulic power system for effortless operation
  • Oversized 20.5" x 15.5" base plate for increased stability
  • Self-lubricating UHMW polyethylene guide blocks for long-lasting durability
  • Safety locks in each column spaced every 3 inches
  • Automatic arm restraints for enhanced safety
  • Heavy-duty 1/2" aircraft-quality equalizer cables
  • Oversized cable sheaves to reduce cable fatigue
  • Double-telescoping screw pads feature tear-resistant polyurethane for long-lasting durability
  • Full size rubber carriage guard reduces door dings
  • 4-piece 63mm stackable adapter set included
  • 10-piece concrete wedge anchors included
  • 36-month limited warranty



Specifications
Lifting Capacity
9,000 lbs. (4,082 kg)
Max. Capacity / Front Axle
4,500 lbs. (2,045 kg)
Max. Capacity / Rear Axle
4,500 lbs. (2,045 kg)
A - Height Overall
109.5" (2,779 mm)
B - Width Overall (at Baseplate)
137.25" (3,486 mm)
C - Width Outside of Columns
127.5" (3,238 mm)
D - Floor To Driveover Height
1.25" (30 mm)
E - Width Inside Columns
113.25" (2,880 mm)
F - Front Arm Reach (Min.)
22.5" (571 mm)
F - Front Arm Reach (Max.)
43.25" (1,099 mm)
G - Rear Arm Reach (Min.)
33.25" (845 mm)
G - Rear Arm Reach (Max.)
53.50" (1,360 mm)
H - Min. Pad Height
4" (100 mm)
I - Rise
70" (1,780 mm)
J - Max. Lift Height (Pad + 63mm Adapt.)
76.5" - 78.5" (1,943 - 1,994 mm)
K - Drive-Thru Clearance
103" (2,618 mm)
Screw Pad Adjustment
2" (51 mm)
Motor
220 VAC / 60Hz / 1 Ph
Time of Full Rise
65 seconds
Max. Load Per Arm
2,250 lbs. (1,023 kg)
Shipping Weight
1,385 lbs. (630 kg)
