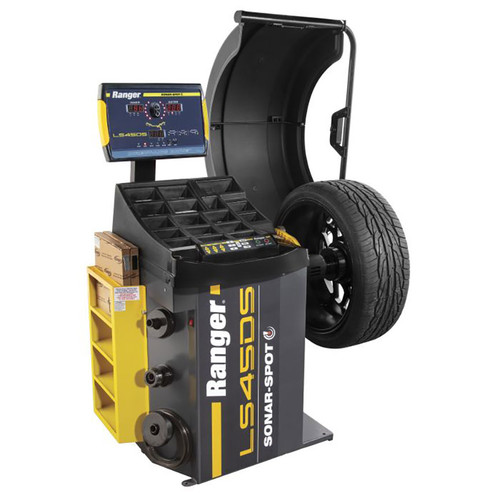

BendPak RANGER LS45DS : Sonar 3D - Laser-Spot Wheel Balancer w-Flange Press Plate - 208-240V, 1-Ph, 50/60hz

Write a Review
$6,095.00
SKU: 5140177
Power: 208-240V
Type: Wheel Balancer
Phase: 1-Ph
Frequency: 50/60hz
Adding to cart… The item has been added
Description
  • Dynamic, static, aluminum, HID (hidden) balancing
  • Multi-user save function holds presets to increase productivity
  • 3D Auto Data Entry for wheel parameter settings
  • Laser-Spot™ technology for precise wheel weight placement
  • Side-position brake holds wheels at precisely 12 o’clock or 6 o’clock for proper weight placement
  • Open-side hood design allows for a broader coverage of tire shapes and sizes
  • Ergonomic control board and easy to read LED display
  • Automatic rolling wheel parameter setting feature saves time, minimizes errors
  • Low-RPM balancing speed
  • Rapid 7-second cycle time
  • Automatic braking
  • Gram/ounce selection and millimeter/inch selection
  • Automatic round-off with top-dead-center weight position indicator
  • Tiered weight placement indicators help identify out-of-sight position weight placements (such as split-weight or hidden “behind-the-spoke” techniques)
  • Manual or automatic start when hood is lowered
  • Self-calibration function
  • High-volume top weight tray and side shelf storage gives you room to inventory a wide variety of wheel weights and tools
  • Side shelf with built-in weight dispenser accommodates Ranger Quick-Peel™ adhesive tape weight convenient bulk rolls
  • Precision-machined, hardened-steel 40 mm shaft
  • Quick-release hub nut for dramatically reduced set-up times
  • Side cone storage pegs keep accessories readily available
Specifications
Model
LS45DS
SKU
5140177
Motor
208–240V, 50/60 Hz, 1 Ph, 0.75 HP (0.56 kW)
Drive system
Belt Drive
Working temperature
23°F – 104°F (-5°C – 40°C)
Balancing modes
Dynamic / Static / Alloy / 1 Hidden
Maximum tire diameter
43" (1093 mm)
Maximum wheel weight
145 lbs. (66 kg)
Max. wheel diameter
12" – 24" (305 mm – 610 mm)
Wheel width capacity
4" – 20" (102 mm – 508 mm)
Balancing increments
0.25 oz (5 grams)
Accuracy
± .035 oz (1 gram)
Resolution
0.25 oz (5 grams)
Balancing speed
260 RPM
Top weight locator (12 o’clock)
Standard
Bottom weight locator (6 o’clock)
Standard
Height, Guard Up
75" (1905 mm)
Height, Guard Down
53" (1347 mm)
Width
50" (1270 mm)
Depth
40" (1016 mm)
Inside & outside measuring
Standard
Millimeter / inches selection
Standard
Ounce / gram selection
Standard
Wheel offset distance setting
Automatic / Slide Arm
Self-calibration function
Standard
Auto start
Standard
Wheel spin braking
Automatic / Electronic Resistor
Wheel holding manual brake pedal
Electromagnetic Brake
Centering collets included
5 Collets
Wheel calipers
Standard
Rear cone mount spring
Standard
No-mar rear cone mount pressure cup
Standard
Quick-release & mount hub nut
Standard
Shipping Weight
454 lbs. (207 kg)
Shipping Dimensions
44" x 30" x 46"
