BendPak RANGER R26FLT : Truck Tire Changer - 208-240V, 1-Ph., 50/60hz

Write a Review
$12,795.00
SKU: 5140137
Power: 208-240V
Type: Tire Changer
Phase: 1-Ph
Frequency: 50/60hz
Adding to cart… The item has been added
Description

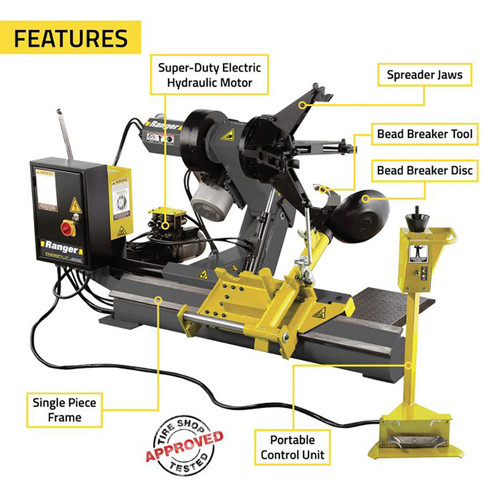

  • Super-duty electric motor and hydraulic drive for superior torque and wheel holding power

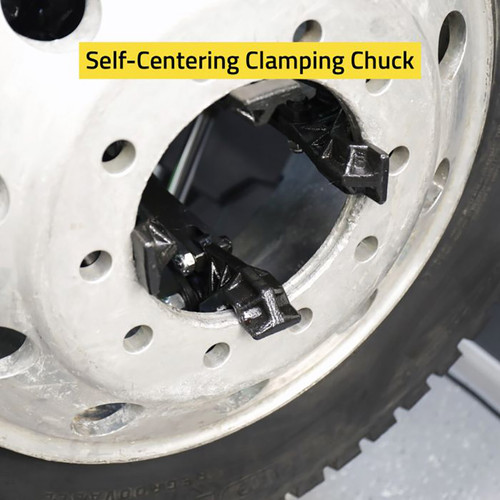

  • Self-centering hydraulic clamping chuck
  • Heavy, tapered roller bearings and a dual direction hydraulic motor provide smooth torque
  • Quick positioning and locking mount / demount arm
  • Hydraulic sled carriage for positioning, bead loosening, mounting and de-mounting procedures
  • Single piece frame for superior rigidity
  • Hydraulically operated spreader jaws ensure secure clamping of virtually all rims and off-road style wheels
  • Massive chuck spindle handles the heaviest loads
  • Sturdy spindle, chuck and mount-demount head hydraulically rotates, raises, and lowers with simple operator controls
  • Very gentle on over-the-road tires and tubeless tires mounted on aluminum wheels
  • Simple design is easy to use
  • Tire lubrication comes standard
  • Funnel comes standard
  • Large bead tool comes standard
  • Small bead tool comes standard
  • Rotary valve O-rings comes standard
  • Fuses comes standard
  • Wheel clamp comes standard
  • Lever grease gun comes standard
Specifications
Drive System Type
Electric / Hydraulic
Standard Voltage
3 HP (220 VAC 50-60 HZ)
Wheel Clamping Method
4 clamps
Bead Breaking System
Armor-plated Disc
Max Rim Diameter
14" – 26" (356 mm – 660 mm)
Max Tire / Wheel Diameter
63" (1,600 mm)
Max Tire / Wheel Width
31" (787 mm)
Shipping Weight
1,425 lbs. (646 kg)
Shipping Dimensions
63'' x 80'' x 38'' (1,600 mm x 2,032 mm x 965 mm)
