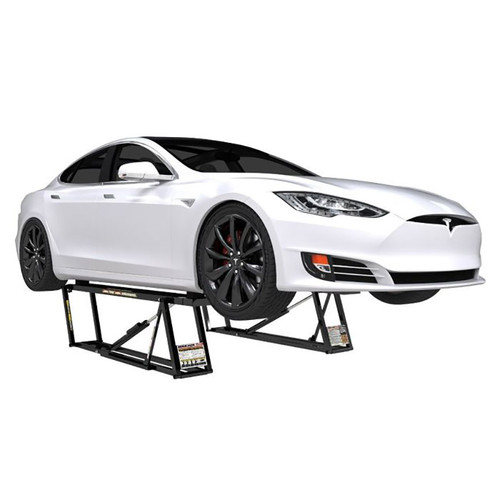

BendPak QuickJack 6000ELX : 6,000 Lb. Portable Car Lift - Super-Long - 208-240V, 50/60 HZ, 1PH

Write a Review
$2,350.00
SKU: 5175652
Capacity: 6000
Power: 208-240V
Type: Portable Car Lift
Style: Super-Long
Phase: 1PH
Frequency: 50/60 HZ
Adding to cart… The item has been added
Description
The 6,000-lb. capacity 6000ELX is a super-long portable car lift with one of the widest lift point spreads in the industry. For drivers of some electric cars or vehicles with exceptionally long wheelbases, these frames are the only way to go. Ideal for detailing and wheel service on EVs.
Specifications
QuickJack specifications diagram

Lifting capacity
6,000 lbs. (2,722 kg)
Lowered height
A - Frame only: 3.5" (89 mm)

B - With 2" block: 4" (102 mm)
Lifting height
D - With 2" block: 21.5" (546 mm)

E - With 3" block: 22.5" (572 mm)

F - Max. height: 24.5" (622 mm)

G - With adapters: 24.25" (610 mm)

H - With adapters + pin: 7" (686 mm)
Compare All Specifications

Lift point spread
I - Maximum: 76" (1,930 mm)

J - Minimum: 53" (1,346 mm)
Frame dimensions (ea.)
K - Width: 12.5" (318 mm)

L - Length: 86.75" (2,203 mm)

A - Height: 3.5" (89 mm)
Weight
112 lbs. (51 kg)
Other specs


Time to full rise: 30 seconds

Power unit weight: 30 lbs. (13 kg)

Shipping dimensions (ea. frame):

89.75" (L) x 16.75" (W) x 6" (H)

(2,279 mm x 425 mm x 154 mm)

Shipping weight: 318 lbs. (144 kg)
