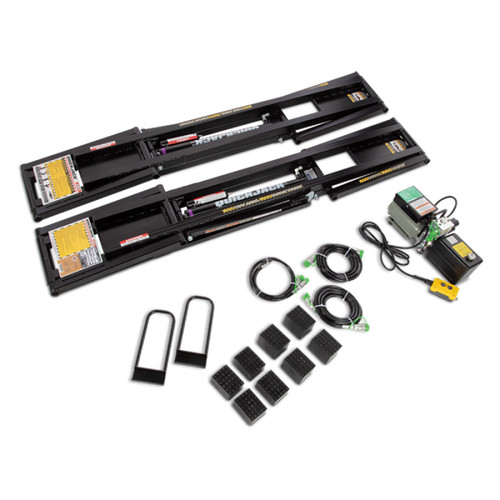

BendPak QuickJack 8000TL : 8,000 Lb. Portable Car Lift - 208-240V, 50/60 HZ, 1PH

Write a Review
$2,125.00
SKU: 5175659
Capacity: 8000
Power: 208-240V
Type: Portable Car Lift
Phase: 1PH
Frequency: 50/60 HZ
Adding to cart… The item has been added
Description

The QuickJack 8000TL is the most powerful standard-length portable car lift on the market, now rated for 8,000 lbs. With a 24.25-inch lift height and reinforced frame rails, it's built to raise cars, light-duty trucks, and SUVs with ease. Pair it with our truck adapter set for even more lift height when working on higher ground-clearance vehicles.

Specifications
Lifting Capacity
8,000 lbs. (3,629 kg)
A - Lowered Height (with 2" block)
4" (102 mm)
B - Lifting Height (with 2" block)
21.5" (546 mm)
C - Lifting Height (with 3" block)
22.5" (572 mm)
D - Max. Lift Height
24.5" (622 mm)
E - Lift Height (with adapters)
24.25" (610 mm)
F - Lift Height (with adapters + pin)
27" (686 mm)
G - Max. Lift Point Spread
60" (1,524 mm)
H - Min. Lift Point Spread
37" (940 mm)
I - Frame Width (each)
12.5" (318 mm)
J - Frame Length (each)
70.75" (1,797 mm)
Frame Weight (each)
98 lbs. (45 kg)
Time to Full Rise
30 seconds
Power Unit Weight
15 lbs. (7 kg)
Shipping Dimensions (each frame)
73.75" (L) x 16.75" (W) x 6.25" (H)
(1,872 mm x 425 mm x 155 mm)
Shipping Weight
280 lbs. (127 kg)
