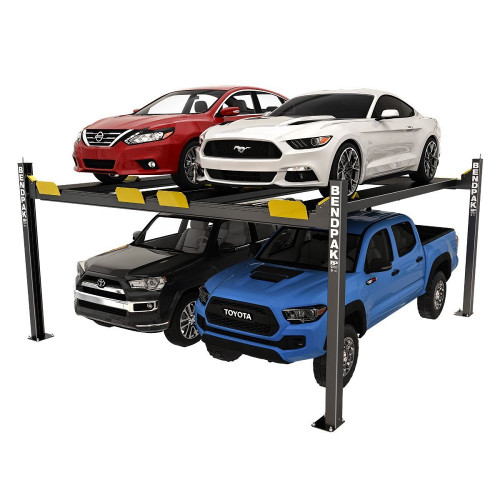

BendPak HD-9EWT : 9,000 LB Extra Wide High Rise 4-Post Lift Ext. Length

Write a Review
$6,795.00
SKU: 5175607
Capacity: 9000
Design: Four-Post
Type: Closed-Front
Type: Parking
Adding to cart… The item has been added
Description

 Four-Post Lift / Extra-Wide / High Lift

 BendPak's HD-9EWT is the perfect solution for all your storage needs. This extra-tall and extra-wide lift offers ample overhead clearance and enough side room to easily park light-duty trucks, SUVs, and virtually any low ground-clearance vehicles. With over 6 inches of additional width compared to the HD-9XW, this lift is perfect for wide cars and off-road vehicles.

Specifications
Lifting Capacity
9,000 lbs. / 4,082 kg
Max Capacity at Front Axle
4,500 lbs. / 2,041 kg
Max Capacity at Rear Axle
4,500 lbs. / 2,041 kg
A. Min. Runway Height
4.75 in. / 121 mm
B. Maximum Rise
82.165 in. / 2,087 mm
C. Maximum Lifting Height
87 in. / 2,208 mm
D. Overall Width ± .125 in. / 3 mm
117 in. / 2,970 mm
E. Outside Length
198 in. / 5,028 mm
F. Overall Length
224.50 in. / 5,703 mm
G. Height of Post
100 in. / 2,537 mm
H. Distance Between Posts
107 in. / 2,716mm
I. Drive-thru Clearance
93.25 in. / 2,371 mm
J. Runway Width
19 in. / 482 mm
K. Runway Length
182.25 in. / 4,629 mm
L. Width Between Runways
35.75 in. – 42.0 in. / 910 MIN – 1,068 mm MAX
M. Runway Centerline
57.75 in. – 64.00 in. / 1,468 – 1,626 mm
N. Outside Edge of Runways
76.75 in.- 83 in. / 1,950 – 2,108 mm
Max. Load Operating Pressure
135 in. / 3,429 mm
Min. Wheelbase @ Rated Capacity
115 in. / 2,921 mm
Min. Wheelbase @ 75 Capacity
95 in. / 2,413 mm
Min. Wheelbase @ 25 Capacity
80 in. / 2,032 mm
Locking Positions
17 spaced every 4 in. / 102 mm
Motor
220 VAC, 60 Hz, 1 Ph (special voltages available upon request)
