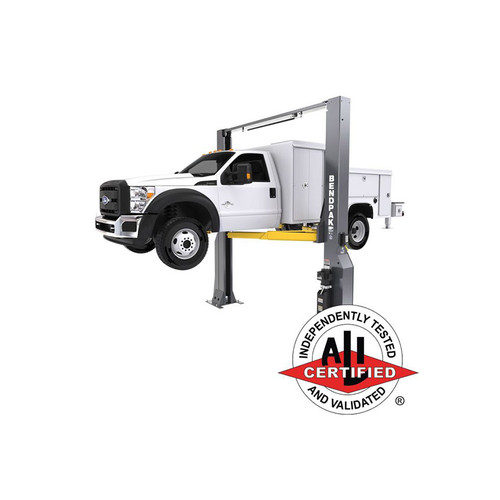

BendPak APEX AL10C : 2-Post Lift - 10,000 Lb. Cap. - Clearfloor, 220V 1Ph

Write a Review
$4,195.00
SKU: 5176251
Capacity: 10000
Power: 220V
Type: 2-Post Lift
Style: Clearfloor
Phase: 1Ph
Adding to cart… The item has been added
Description

The APEX AL10C is a 10,000-lb clearfloor two-post lift engineered for shops that demand unrestricted under-vehicle access, heavy-duty strength, and long-term reliability. Featuring a direct-drive hydraulic lifting system, rugged overhead box-beam construction, and advanced safety systems, the AL10C delivers smooth, consistent lifting performance for a wide range of vehicles. Previously sold under the GrandPrix brand, the AL10C now carries the APEX name while retaining the same proven design, performance, and BendPak-backed support.

APEX AL10C Two Post Car Lift - 10,000-Lb Capacity


• 10,000-lb lifting capacity supports a wide range of passenger vehicles, performance cars, and light trucks
• Clearfloor two-post design provides unobstructed access beneath the vehicle for improved workflow
• Direct-drive dual hydraulic cylinders reduce moving parts while delivering smooth, consistent lifting performance
• Rugged overhead box-beam construction enhances structural stability and reduces column stress
• Padded overhead safety shutoff bar automatically stops lift travel if a vehicle is raised too high
• Symmetric and asymmetric arm configurations allow fast, flexible vehicle positioning
• Triple-telescoping front arms and extended rear arms accommodate a wide range of wheelbases and frame designs
• Automatic safety locks every 3 inches ensure secure load holding throughout the lift range
• Automatic arm restraints prevent unintended arm movement during service
• 36-month limited warranty with industry-leading coverage backed by BendPak support

Specifications
Lifting Capacity
10,000 lbs. (4,536 kg)
Max. Capacity / Front Axle
5,000 lbs. (2,268 kg)
Max. Capacity / Rear Axle
5,000 lbs. (2,268 kg)
A - Height Overall
148" (3,759 mm)
B - Width Overall (at Baseplate)
137.5" (3,492 mm)
C - Width Outside of Columns
128.5" (3,264 mm)
D - Floor to Overhead Switch Bar
142.5" (3,619 mm)
E - Width Inside Columns
114.5" (2,908 mm)
F - Front Arm Reach (Min.)
22.5" (571 mm)
F - Front Arm Reach (Max.)
43.25" (1,099 mm)
G - Rear Arm Reach (Min.)
33.5" (845 mm)
G - Rear Arm Reach (Max.)
53.25" (1,353 mm)
H - Min. Pad Height
3.9" (100 mm)
I - Rise
70" (1,778 mm)
J - Max. Lift Height (Pad + 63mm Adapt.)
76.5" - 78.5" (1,943 - 1,994 mm)
K - Drive-Thru Clearance
103" (2,618 mm)
Screw Pad Adjustment
2" (51 mm)
Motor
220 VAC / 60Hz / 1 Ph
Time of Full Rise
65 seconds
Max. Load Per Arm
2,500 lbs. (1,134 kg)
Shipping Weight
1,545 lbs. (703 kg)
