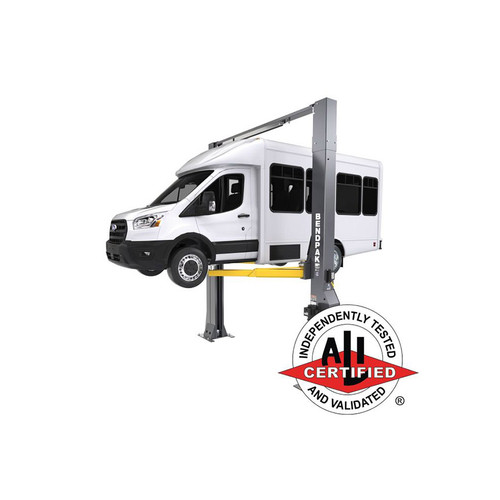

BendPak 2- Post Lift OctaFlex Octa- Flex / 12K Capacity / Clearfloor

Write a Review
$27,523.53
SKU: 5175612
Capacity: 12000
Style: Clearfloor
Type: 2- Post Lift
Adding to cart… The item has been added
Description

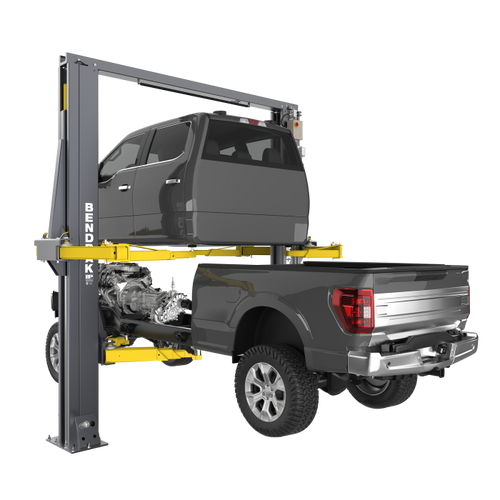

The BendPak OctaFlex 12DPS is a next- generation 12,000- lb two- post service lift with eight fully adjustable lifting arms designed to handle modern vehicle service challenges. Built for advanced repair environments, the OctaFlex system combines traditional frame- engaging lift capability with integrated auxiliary lift- assist arms engineered for cab- off truck service, EV battery packs, drivetrains, and other heavy components. With triple- telescoping primary arms, independent auxiliary lifting arms, Bi- Metric symmetric/asymmetric configuration, and Direct- Drive hydraulic technology, the OctaFlex 12DPS dramatically expands what a two- post lift can do inside a professional shop.
Specifications
Primary Lift Capacity
12,000 lbs. (5,443 kg)
Max. Capacity Primary Arms / Front Axle
6,000 lbs. (2,722 kg)
Max. Capacity Primary Arms / Rear Axle
6,000 lbs. (2,722 kg)
Max. Load per Primary Lift Arm
3,000 lbs. (1,361 kg)
Auxiliary Lift Capacity
6,000 lbs. (2,722 kg)
Max. Capacity Auxiliary Arms / Front
3,000 lbs. (1,361 kg)
Max. Capacity Auxiliary Arms / Rear
3,000 lbs. (1,361 kg)
Max. Capacity per Auxiliary Arm
1,500 lbs. (680 kg)
A - Length, Overall
164.75" (4,182 mm)
B - Length, Base Plate to Base Plate
153.75" (3,905 mm)
C - Width, Base Plate
25.5" (650 mm)
D - Height, Overall
173.5" (4,405 mm)
E - Height, Floor to Limit Switch
166.25" (4,223 mm)
F - Drive-Thru
102.75" (2,613 mm)
G - Inside Posts
119.75" (3,041 mm)
H - Aux. Carriage to Lift Post
8" (205 mm)
I - Max. Rise, Primary Arms
76" (1,930 mm)
J - Max. Lifting Height, Primary Arms
86.75" (2,203 mm)
K - Min. Height w/ Frame Cradle, Primary Arms
4.25" (109 mm)
L - Primary Front Arm Length (Min. / Max.)
26" to 55.25" (659 to 1,403 mm)
M - Primary Rear Arm Length (Min. / Max.)
29.25" to 60" (745 to 1,525 mm)
N - Max. Rise, Aux. Arms
87.5" (2,220 mm)
O - Max. Lifting Height, Aux. Arms
92.5" (2,562 mm)
P - Min. Height w/ Pad, Aux. Arms
12.5" (320 mm)
Q - Aux. Arm Length
28.25" (720 mm)
R - Aux. Arm Extension Length (Min. / Max.)
30" to 44" (764 to 1,120 mm)
Screw Pad Adjustment Auxiliary Arm
1.5" (40 mm)
Hydraulic Pressure at Max. Load Primary Arms
2,250 psi (15.51 MPa)
Hydraulic Pressure at Max. Load Auxiliary Arms
2,200 psi (15.17 MPa)
Time to Full Rise
≈ 45 seconds
Motor
220 VAC, 60 Hz, 1 Phase, 17 Amps
Sound
<70 dB
