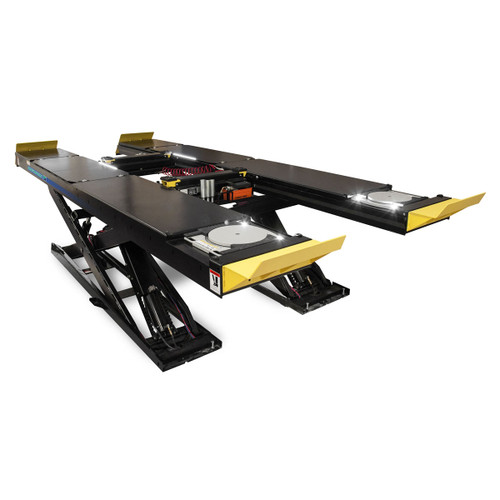

Autel S14ALOR1FM : 14,000 LB Flush Mounted Scissor Alignment Lift

Write a Review
$45,549.00
$43,269.00
(You save $2,280.00 )
SKU: S14ALOR1FM
UPC: 849438087425
Capacity: 14000
Design: Scissor
Mount: Flush
Type: Alignment
Adding to cart… The item has been added
Description

'• 14,000-lb. capacity scissor alignment lift with open front and rear design
• Flush-mount installation for in-ground alignment service
• Full-floating rear slip plates with stainless steel front radius plates and UHMW turn plate pocket protectors
• Includes two 7,000-lb. heavy-duty air/hydraulic rolling jacks with integrated rail detents
• Center-mount air outlet kit, LED light kit, and tire inflation air kits at each wheel
• Console-mounted 220-volt, single-phase power unit
• Finished in black runways and baseframes, yellow front and rear ramps, and red scissor structure, accented with a red Autel logo label
• ALI Certified and North American made
• 3-Year Limited warranty on lift, 5-year parts warranty on jacks, 90 day warranty on accessories

Specifications
14K CAPACITY
CAPACITY14,000 lbs / 6.4 T
ALI
CERTIFICATION		Yes
STYLEOpen Front & Rear
A RAISED HEIGHT74"
(1,880mm)
B LOWERED HEIGHT0" (0mm) FLUSH
C OVERALL LENGTH
STANDARD		260 3/4"
(6,604mm)
OVERALL LENGTH
EXTENDED		18"
(457mm)
With Purchase of PN: LPRE
D DECK LENGTH
STANDARD		203"
(5,156mm)
DECK LENGTH
EXTENDED		-
E WIDTH BETWEEN
RUNWAYS		41"
(1,041mm)
F RUNWAY DECK
WIDTH		26"
(660mm)
G OVERALL WIDTH
FRONT/REAR		91 1/2"
(2,324mm)
H MAX COLUMN
HEIGHT		-
MIN. 4 WHEEL
ALIGNMENT WB		84"
(2,134mm)
MAX. 4 WHEEL
ALIGNMENT WB		164"
(4,165mm)
MIN. 2 WHEEL
ALIGNMENT WB
STANDARD		173"
(4,394mm)
MAX. 2 WHEEL
ALIGNMENT WB
EXTENDED		-
LIFT TIME58 Seconds
POWER
REQUIREMENTS		230V, 60Hz,
1PH 30AMP
INCLUDED
JACKING BEAM		2 X 7,000 lbs / 3.2 T
SHIPPING WEIGHTS6,400
(2,903kg)
