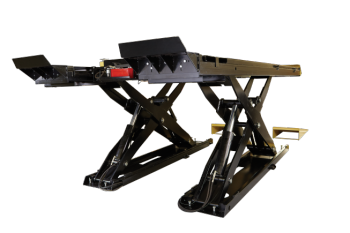

Autel S12ALOR1FM : 12,000 LB Flush Mounted Scissor Alignment Lift

Write a Review
$44,159.00
$41,949.00
(You save $2,210.00 )
SKU: S12ALOR1FM
UPC: 849438087418
Capacity: 12000
Design: Scissor
Mount: Flush
Type: Alignment
Adding to cart… The item has been added
Description
  • 12,000-lb. capacity scissor alignment lift with open front and rear design
  • Flush-mount installation for in-ground alignment service
  • Full-floating rear slip plates with stainless-steel front radius plates and UHMW turn plate pocket protectors
  • Includes two 6,000-lb. heavy-duty air/hydraulic rolling jacks with integrated rail detents
  • Center-mount air outlet kit, LED light kit, and tire inflation air kits at each wheel
  • Console-mounted 220-volt, single-phase power unit
  • Finished in black runways and baseframes, yellow front and rear ramps, and red scissor structure, accented with a red Autel logo label
  • ALI Certified and North American made
  • 3-Year Limited warranty on lift, 5-year parts warranty on jacks, 90-day warranty on accessories
Specifications
12K CAPACITY
CAPACITY12,000 lbs / 5.4 T
ALI
CERTIFICATION		Yes
STYLEOpen Front & Rear
A RAISED HEIGHT74"
(1,880mm)
B LOWERED HEIGHT0" (0mm) FLUSH
C OVERALL LENGTH
STANDARD		242 3/4"
(6,147mm)
OVERALL LENGTH
EXTENDED		18"
(457mm)
With Purchase of PN: LPRE
D DECK LENGTH
STANDARD		185"
(4,699mm)
DECK LENGTH
EXTENDED		-
E WIDTH BETWEEN
RUNWAYS		41"
(1,041mm)
F RUNWAY DECK
WIDTH		26"
(660mm)
G OVERALL WIDTH
FRONT/REAR		91 1/2"
(2,324mm)
H MAX COLUMN
HEIGHT		-
MIN. 4 WHEEL
ALIGNMENT WB		84"
(2,134mm)
MAX. 4 WHEEL
ALIGNMENT WB		164"
(4,165mm)
MIN. 2 WHEEL
ALIGNMENT WB
STANDARD		173"
(4,394mm)
MAX. 2 WHEEL
ALIGNMENT WB
EXTENDED		-
LIFT TIME58 Seconds
POWER
REQUIREMENTS		230V, 60Hz,
1PH 30AMP
INCLUDED
JACKING BEAM		2 X 6,000 lbs / 2.7 T
SHIPPING WEIGHTS6,200
(2,812kg)
