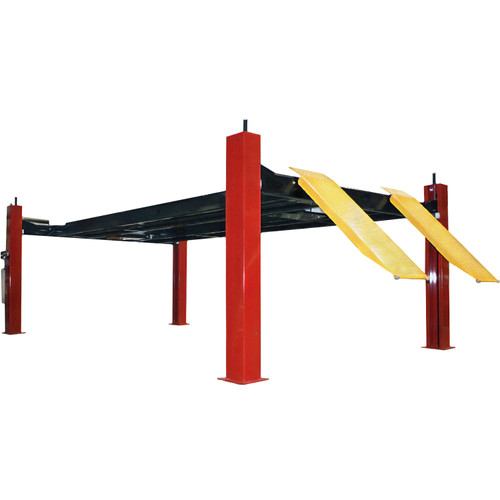

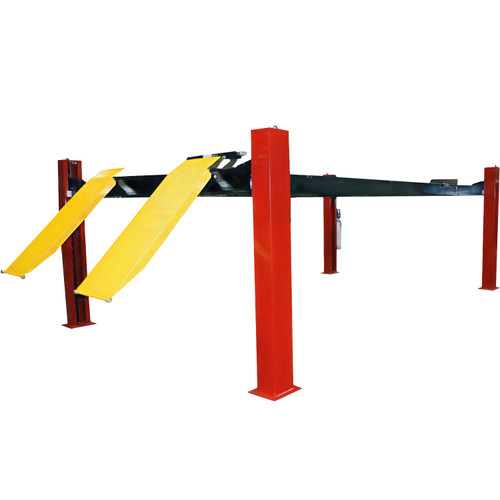

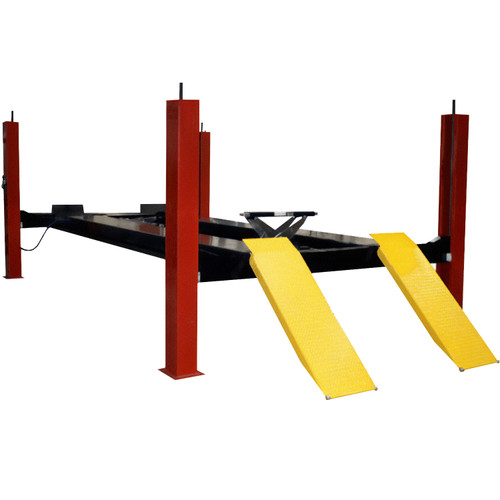

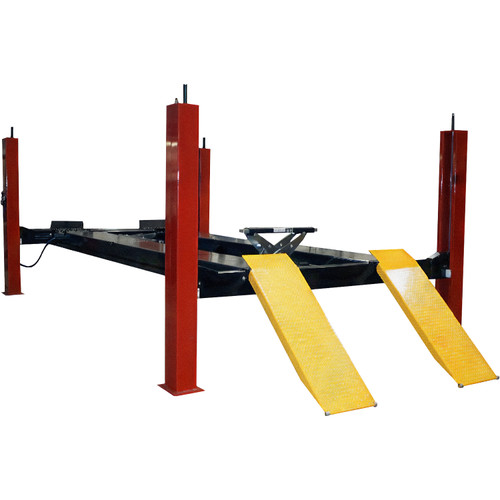

Autel 419ALCXR1P : 19,000 LB 4-Post Closed Alignment Lift w. ext runway

Write a Review
$42,989.00
$40,839.00
(You save $2,150.00 )
SKU: 419ALCXR1P
UPC: 849438087333
Capacity: 19000
Type: Alignment
Design: Four-Post
Type: Closed Front
Adding to cart… The item has been added
Description
• 19,000-lb. capacity closed-front 4-post alignment lift
• Overall length of 285-1/8 inches with 237-inch runways
• Supports up to 164 inches for four-wheel alignments and 220-1/2 inches for two-wheel alignments
• Full-floating rear slip plates with stainless steel front radius plates and UHMW turn plate pocket protectors
• Includes two 9,000-lb. heavy-duty air/hydraulic rolling jacks with integrated rail detents
• Center-mount air outlet kit, LED light kit, and tire inflation air kits at each wheel
• 220-volt, single-phase power unit
• Finished in black runways and baseframes, yellow front and rear ramps, and red columns, accented with a red Autel logo label
• ALI Certified and North American made
• 3-Year Limited warranty on lift, 5-year parts warranty on jacks, 90 day warranty on accessories
Specifications
4-POST 19K CAPACITY
CAPACITY 19,000 lbs / 8.6 T
ALI
CERTIFICATION 		Yes
STYLE Closed Front
A RAISED HEIGHT 74"
(1,880mm)
B LOWERED HEIGHT 8 7/8"
(225mm)
C OVERALL LENGTH
STANDARD 		274 3/4"
(6,969mm)
OVERALL LENGTH
EXTENDED 		301 3/4"
(7,655mm)
D DECK LENGTH
STANDARD 		211"
(5,359mm)
DECK LENGTH
EXTENDED 		238"
(6,045mm)
E WIDTH BETWEEN
RUNWAYS 		41"
(1,041mm)
F RUNWAY DECK
WIDTH 		26"
(660mm)
G OVERALL WIDTH
FRONT/REAR 		150"
(3,810mm)
H MAX COLUMN
HEIGHT 		86"
(2,184mm)
MIN. 4 WHEEL
ALIGNMENT WB 		84"
(2,134mm)
MAX. 4 WHEEL
ALIGNMENT WB 		164"
(4,165mm)
MIN. 2 WHEEL
ALIGNMENT WB
STANDARD 		177"
(4,495mm)
MAX. 2 WHEEL
ALIGNMENT WB
EXTENDED 		204"
(5,181mm)
LIFT TIME 99 Seconds
POWER
REQUIREMENTS 		230V, 60Hz,
1PH, 25AMP
INCLUDED
JACKING BEAM 		2 X 9,000 lbs / 4.1 T
SHIPPING WEIGHTS 6,300
(2,857kg)
