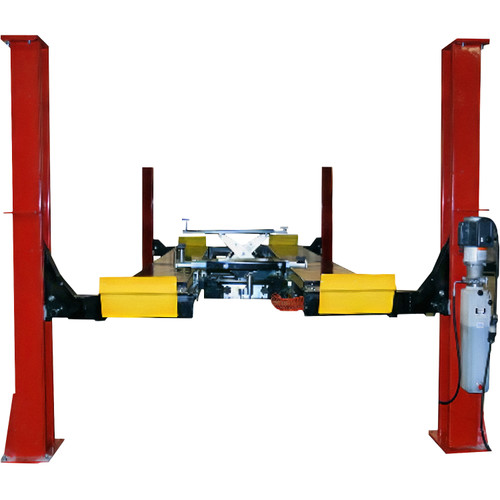

Autel 415ALOXR1P : 15,000 Open Post Alignment Lift w ext. runway

Write a Review
$43,399.00
$41,229.00
(You save $2,170.00 )
SKU: 415ALOXR1P
UPC: 849438087319
Capacity: 15000
Type: Alignment
Design: Four-Post
Adding to cart… The item has been added
Description
• 15,000-lb. capacity open-front 4-post alignment lift
• Overall length of 285-1/8 inches with 237-inch runways
• Supports up to 164 inches for four-wheel alignments and 220-1/2 inches for two-wheel alignments
• Full-floating rear slip plates with stainless steel front radius plates and UHMW turn plate pocket protectors
• Includes two 7,500-lb. heavy-duty air/hydraulic rolling jacks with integrated rail detents
• Center-mount air outlet kit, LED light kit, and tire inflation air kits at each wheel
• 220-volt, single-phase power unit
• Finished in black runways and baseframes, yellow front and rear ramps, and red columns, accented with a red Autel logo label
• ALI Certified and North American made
• 3-Year Limited warranty on lift, 5-year parts warranty on jacks, 90 day warranty on accessories
Specifications
4-POST 15K CAPACITY
CAPACITY 15,000 lbs / 6.8 T
ALI
CERTIFICATION 		Yes
STYLE Open Front
A RAISED HEIGHT 75"
(1,905mm)
B LOWERED HEIGHT 8 3/8"
(213mm)
C OVERALL LENGTH
STANDARD 		260 1/2"
(6,617mm)
OVERALL LENGTH
EXTENDED 		287 1/2"
(7,303mm)
D DECK LENGTH
STANDARD 		211"
(5,359mm)
DECK LENGTH
EXTENDED 		238"
(6,045mm)
E WIDTH BETWEEN
RUNWAYS 		41"
(1,041mm)
F RUNWAY DECK
WIDTH 		26"
(660mm)
G OVERALL WIDTH
FRONT/REAR 		143" / 137 1/2"
(3,632mm) / (3,493mm)
H MAX COLUMN
HEIGHT 		101 1/2"
(2,565mm)
MIN. 4 WHEEL
ALIGNMENT WB 		84"
(2,134mm)
MAX. 4 WHEEL
ALIGNMENT WB 		164"
(4,165mm)
MIN. 2 WHEEL
ALIGNMENT WB
STANDARD 		177"
(4,495mm)
MAX. 2 WHEEL
ALIGNMENT WB
EXTENDED 		204"
(5,181mm)
LIFT TIME 76 Seconds
POWER
REQUIREMENTS 		230V, 60Hz,
1PH, 25AMP
INCLUDED
JACKING BEAM 		2 X 7,500 lbs / 3.5 T
SHIPPING WEIGHTS 5,600
(2,540kg)
