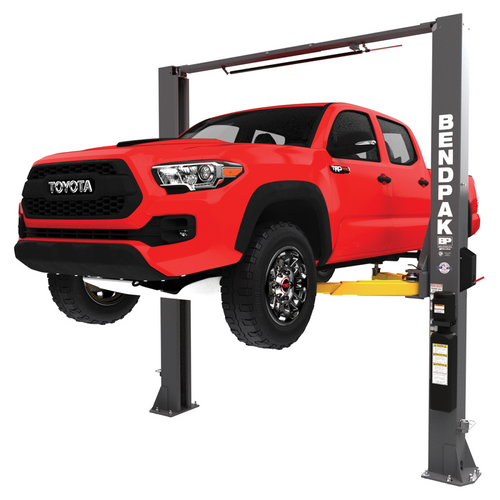

BendPak 12AP-SRT : 12,000 LB Symmetric/Asymmetric Short Rise 2-Post Lift

Write a Review
$9,295.00
SKU: 5175605
Capacity: 12000
Design: Two-Post
Type: Heavy Duty
Configuration: Symmetric
Configuration: Asymmetric
Overall Height: 93"
Overall Width: 142"
Inside Columns: 119"
Adding to cart… The item has been added
Description

12,000-lb. Capacity / Short-Rise / 2-Post Lift / Experience seamless adaptability like never before with the 12AP-SRT's intuitive design, capable of effortlessly transitioning between symmetric and asymmetric lifting configurations. Whether you're tackling routine tire changes or complex wheel alignments, this lift is equipped to handle it all with precision and ease.

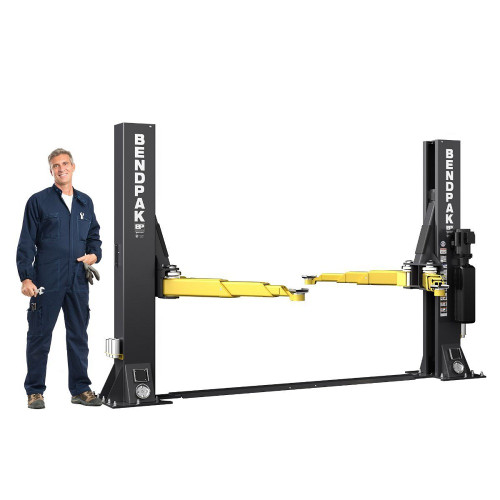

BendPak 12AP-SRT Short-Rise Two Post Car Lift - 12,000-Lb Capacity - Floorplate

Durable Powder Coat Finish
Power Side Post Supports the Power Unit, the Safety Lock Release Handle and the Lowering Handle

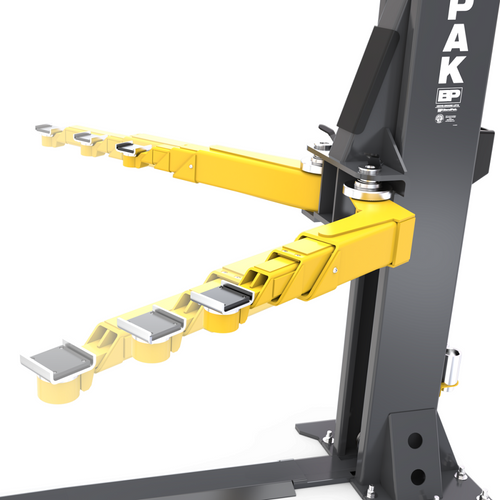

Exclusive Bi-Metric™ Arm Design for More Versatile Arm Positioning

Four cradle adapters are included with your lift for raising trucks and SUVs (body-on-frame style)

Single-Point Safety Release
Drop-End Arms Provide a Lower Pad Height
Dual Hydraulic Direct-Drive Cylinders
Electric / Hydraulic HVLP Power System
Self-Lubricating Dura-Glide UHMW Polyethylene Bearing System
Safety Locks in Each Column Spaced Every 3”
Automatic Arm Restraints Withstand Over 2000-Pounds of Side Force
Heavy-Duty ½” Aircraft-Quality Equalizer Cables
Specifications

Capacity

Lifting Capacity
12,000 lbs. (5,443 kg)
Max Capacity / Front Axle
6,000 lbs. (2,721.5 kg)
Max Capacity / Rear Axle
6,000 lbs. (2,721.5 kg)
Maximum Capacity per Lift Arm
3,000 lbs. (1,360 kg)

Dimensions

A – Width Overall:
155 in. (3,937 mm)
B – Base Plate Width:
26.5 in. (674 mm)
C – Post Height:
93.5 in. (2,377 mm)
D – Drive-Thru:
102.25 in. (2,598 mm)
E – Inside Posts:
119 in. (3,026 mm)
F – Outside Posts:
142 in. (3,606 mm)
G – Minimum Height with Pad:
4.25 in. (105 mm)
H – Max. Lifting Height:
46 in. (1,168 mm)
I – Max. Rise:
42.75 in. (1,089 mm)
J – Min. Height with Adapters (5 in + 2.5 in):
11.75 in. (298 mm)
K – Floor Plate Height:
1.5 in. (36 mm)
L – Floor Plate Width:
9.5 in. (240 mm)

Arms & Pads

M – Front Arm Reach (Measured from the Lift Arm Pivot to the Cradle Pad Center Pin):
26 in. min – 55.25 in. max. (659 mm min. – 1,403 mm max.)
N – Rear Arm Reach (Measured from the Lift Arm Pivot to the Cradle Pad Center Pin):
29.25 in. min. – 60 in. max. (745 mm – 1,525 mm max.)

Safety

Safety Lock Positions:
8

Power Unit

Standard Motor:
208-230 VAC, 50/60 Hz, 1 Phase, 5 HP, 23 Amps
Time to Full Rise:
≈45 seconds
Sound Pressure:
Lift produces less than 85dB when in operation.
Operating Hydraulic Pressure under Max. Load:
2,170 psi
Special voltages available upon request.
