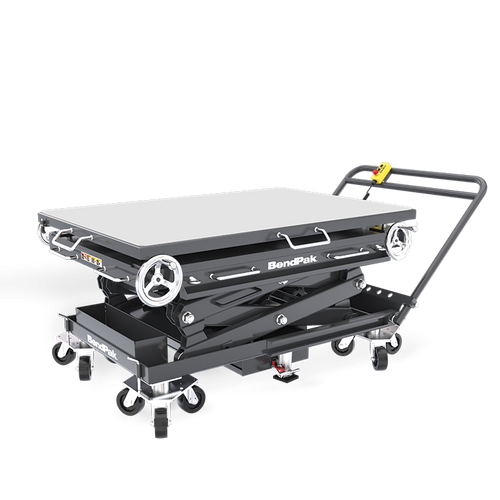

BendPak Mobi-EVS EVS4500 : 4,500 LB EV Battery Lift

Write a Review
$11,895.00
SKU: 5175613
Capacity: 3000
Adding to cart… The item has been added
Description
4,500-lb. Capacity / EV Battery Pack and Powertrain Lift Table / Rechargeable 12V / Incl. Battery / BendPak's revolutionary Mobi-EVS line of full-rise battery powered mobile scissor lift tables are perfectly suited for Electric Vehicle Service and EV Battery Pack replacement. The EVS4500 boasts a 4,500-lb. lift capacity and features a compact design which can be easily transported anywhere in the workplace, making them ideal for multi-bay facilities or workplaces with confined areas.
Specifications
Lifting Capacity
4,500 lbs. / 2,041 kg
Maximum Rise
77.75 in. / 1,972 mm
Overall length
91.25 in. / 2,318 mm
Top Deck length (with handles)
71.25 in. / 1,807 mm
Top Deck Length
63 in. / 1,600 mm
Overall Width (with handles)
53 in / 1,348 mm
Top Deck Width
42.75 in. / 1,088 mm
Screw Jack Max. Adjustment
1.5 in. / 38 mm
Minimum Deck Height
34.25 in. / 868 mm
Height of Steering Handle
39.25 in. / 997 mm
Motor
12VDC
Operating Pressure at Max Load
1720 psi
Battery Charger
Input: 120 VAC, 60 Hz. / Output: 12VDC, 15A
Battery Charge Time
10-12 Hours to full charge from ≈20%
Lifting Time
≈18 seconds
Weight
1,918 lbs. / 870 kg
