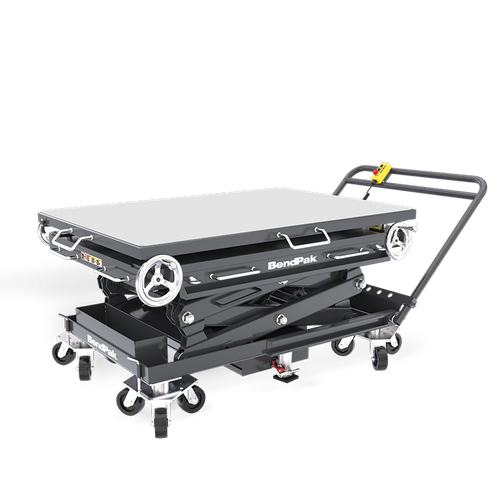

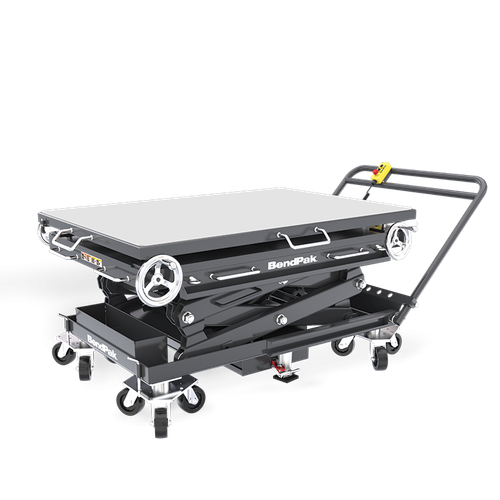

BendPak Mobi-EVS EVS3000 : 3,000 LB EV Battery Lift

Write a Review
$10,595.00
SKU: 5175611
Capacity: 3000
Adding to cart… The item has been added
Description

3,000-lb. Capacity / EV Battery Pack and Powertrain Lift Table / Rechargeable 12V / Incl. Battery / The EVS300 is the latest in BendPak's revolutionary Mobi-EVS line of full-rise battery powered mobile scissor lift tables and is perfectly suited for Electric Vehicle Service and EV Battery Pack replacement. With it, you'll be able to safely handle critical vehicle components weighing up to 3,000 lbs. With a compact design, this space-saving lift table can be easily transported anywhere in the workplace, making the EVS3000 ideal for multi-bay facilities or workplaces with confined areas.

  • Zero-throw casters for extreme maneuverability
  • Adjustable screw jack
  • Stowable tow bar
  • Twin hydraulic cylinders
  • Tri-caster locking pin
  • DC Electric power system with onboard charging
  • Multi-point safety locks
  • Remote control operation
  • Full-length utility trays
  • Manual floor locks
  • Hydraulic fail-safe circuit
Specifications
Lifting Capacity
3,000 lbs. / 1,361 kg
Maximum Rise
77.75 in. / 1,972 mm
Overall length
91.25 in. / 2,318 mm
Top Deck length (with handles)
71.25 in. / 1,807 mm
Top Deck Length
63 in. / 1,600 mm
Overall Width (with handles)
53 in / 1,348 mm
Top Deck Width
42.75 in. / 1,088 mm
Screw Jack Max. Adjustment
1.5 in. / 38 mm
Minimum Deck Height
34.25 in. / 868 mm
Height of Steering Handle
39.25 in. / 997 mm
Motor
12VDC
Operating Pressure at Max Load
1250 psi
Battery Charger
Input: 120 VAC, 60 Hz. / Output: 12VDC, 15A
Battery Charge Time
10-12 Hours to full charge from ≈20%
Lifting Time
≈18 seconds
Weight
1,918 lbs. / 870 kg
