BendPak HD-9XL: 9,000 LB 4-Post Lift

Write a Review
$6,295.00
SKU: 5175859
Capacity: 9000
Design: Four-Post
Type: Closed-Front
Type: Parking
Adding to cart… The item has been added
Description

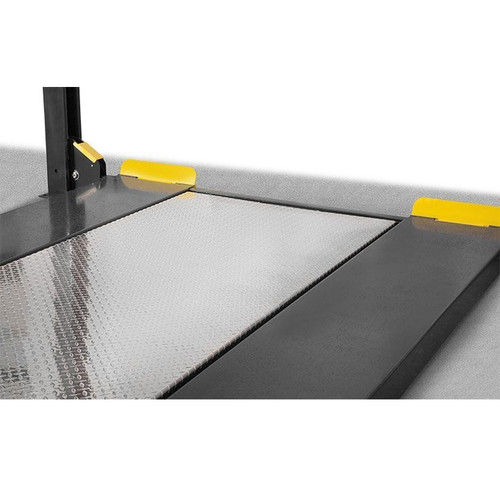

9,000-lb. Capacity / Four-Post Lift / Standard Width / Extended Length / The HD-9XL is the ideal 9,000-lb. capacity four-post lift for vehicles with longer wheelbases. In fact, the runways are about two feet longer than the runways on the standard HD-9. This 4-post lift variety is available with optional casters, dip-trays, jack platform and more.
Specifications

Capacity

Lifting Capacity*
9,000 lbs. (4,082 kg)
*Max Capacity / Front Axle
4,500 lbs. (2,041 kg)
*Max Capacity / Rear Axle
4,500 lbs. (2,041 kg)

Rise

A - Min. Runway Height:
5" (127 mm)
B - Max. Rise:
70" (1,778 mm)
C - Max. Lifting Height:
75" (1,905 mm)
Time to Full Rise:
50 seconds

Outside Dimensions

D - Overall Width:
110.25" (2,800 mm)
E - Outside Length:
198" (5,029 mm)
F - Overall Length:
224.5" (5,702 mm)
G - Height of Columns:
88" (2,235 mm)

Inside Dimensions

H - Width Between Columns:
100.25" (2,546 mm)
I - Drive-Thru Clearance:
86.65" (2,200 mm)

Runways

J - Runway Width:
19" (483 mm)
K - Length of Runways:
182.25" (4,629 mm)
L - Width Between Runways:
35" (889 mm) or 41" (1,041 mm)
M - Runway Centerline:
56.75" (1,441 mm) or 63" (1,600 mm)
N - Outside Edge of Runways:
75.75" (1,924 mm) or 82" (2,083 mm)

Minimum Wheelbase

Rated Capacity:
135" (3,429 mm)
75% Capacity:
115" (2,921 mm)
50% Capacity:
95" (2,413 mm)
25% Capacity:
80" (2,032 mm)

Locking

Locking Positions:
14
Lock Spacing:
Every 4" (102 mm)

Power Unit

Motor:
220 VAC / 60 Hz / 1 Ph
Noise:
45 dB

Shipping

Weight:
1,696 lbs. (769 kg)
Dimensions:
192'' x 22'' x 28'' (4,877 mm x 558 mm x 711 mm)
