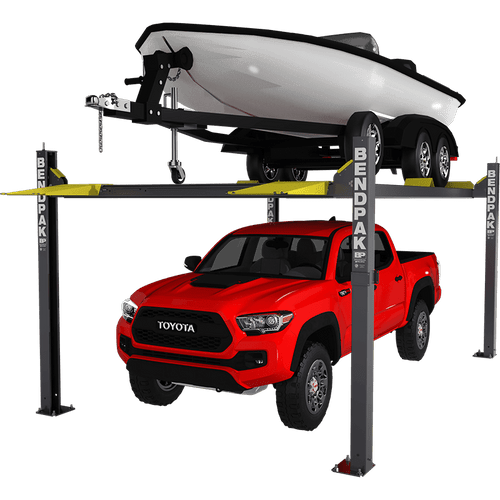

BendPak HD-75BXT : 7,500 LB Vehicle and Boat Storage Lift Ext. Length

Write a Review
$9,995.00
SKU: 5175251
Capacity: 7500
Design: Four-Post
Type: Parking
Adding to cart… The item has been added
Description

The HD-75BXT is the perfect dry-docking solution. Keep your boat in the air and out of the water. Because it features adjustable runways that accommodate cars and trucks, the HD-75BXT pulls double-duty as a professional-grade car lift for vehicles.

7,500 lb. lifting capacity

  • Two different lifting heights to choose from
  • Internal anti-sway slider blocks in each column
  • No more docking fees
  • Heavy-duty aircraft cable
  • Electric-hydraulic power system
  • Single hydraulic cylinder
  • Dual-hub wire rope sheaves
  • Multi-level locking positions
  • Heavy-duty aircraft cable
  • Rugged 1-1/4” roller axles
  • Push-button pneumatic safety release
  • Durable powder coat finish
  • Longer approach ramps
Specifications

Capacity

Lifting Capacity*
7,500 lbs. (3,402 kg)
*Max Capacity / Front Axle
3,750 lbs. (1,701 kg)
*Max Capacity / Rear Axle
3,750 lbs. (1,701 kg)

Rise

A - Min. Runway Height:
5" (127 mm)
B - Max. Rise:
82" (2,083 mm)
C - Max. Lifting Height:
87" (2,210 mm)
Time to Full Rise:
50 seconds

Outside Dimensions

D - Overall Width:
133.75" (3,397 mm)
E - Outside Length:
222" (5,639 mm)
F - Overall Length:
248.5" (6,312 mm)
G - Height of Columns:
100" (2,540 mm)

Inside Dimensions

H - Width Between Columns:
122" (3,099 mm)
I - Drive-Thru Clearance:
108.5" (2,756 mm)

Runways

J - Runway Width:
19" (483 mm)
K - Length of Runways:
206.25" (5,239 mm)
L - Width Between Runways:
46.5" (1,181 mm) or 66.5" (1,689 mm)
M - Runway Centerline:
68.5" (1,740 mm) or 88.5" (2,248 mm)
N - Outside Edge of Runways:
87.5" (2,223 mm) or 107.5" (2,730 mm)

Minimum Wheelbase

Rated Capacity:
150" (3,810 mm)
75% Capacity:
130" (3,302 mm)
50% Capacity:
110" (2,794 mm)
25% Capacity:
90" (2,286 mm)

Locking

Locking Positions:
17
Lock Spacing:
spaced every 4 in. / 102 mm

Power Unit

Motor:
208-230 VAC, 60 Hz, 1 Ph
