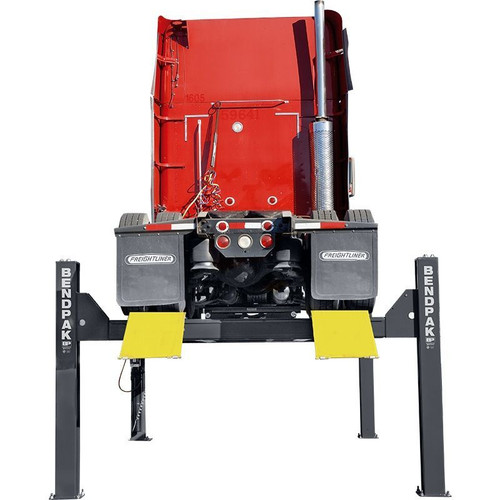

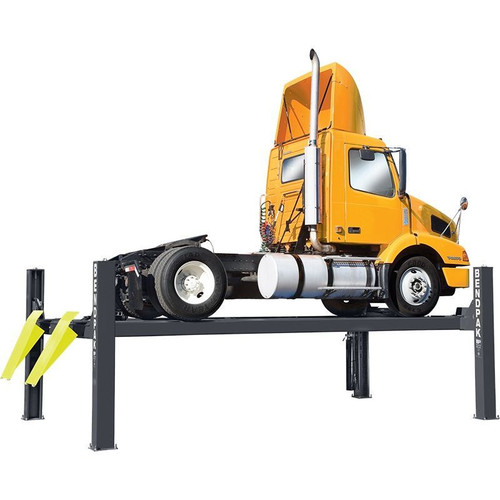

BendPak HDS-40X : 40,000 LB Heavy Duty 4-Post Lift Ext. Length

Write a Review
$35,995.00
SKU: 5175178
Capacity: 40000
Design: Four-Post
Type: Closed-Front
Type: Heavy Duty
Adding to cart… The item has been added
Description
40,000-lb. Capacity / Four-Post Lift / Extended / The HDS-40X is BendPak's heaviest-duty, extended-length truck lift. That makes it the most powerful offering in our arsenal. A rugged design with safety features unmatched in the industry, anyone working on massive commercial vehicles should consider this mighty machine.
Specifications

Capacity

Lifting Capacity*
40,000 lbs. (18,144 kg)
*Max Capacity / Front Axle
20,000 lbs. (9,072 kg)
*Max Capacity / Rear Axle
20,000 lbs. (9,072 kg)

Rise

A - Min. Runway Height:
9.5" (241 mm)
B - Max. Rise:
60" (1,524 mm)
C - Max. Lifting Height:
67" (1,702 mm)
Time to Full Rise:
75 seconds

Outside Dimensions

D - Overall Width:
153.5" (3,899 mm)
E - Outside Length:
317" (8,052 mm)
F - Overall Length:
373.75" (9,487 mm)
G - Height of Columns:
91.25" (2,318 mm)

Inside Dimensions

H - Width Between Columns:
133.5" (3,391 mm)
I - Drive-Thru Clearance:
109" (2,769 mm)

Runways

J - Runway Width:
28" (711 mm)
K - Length of Runways:
316" (8,026 mm)
L - Width Between Runways:
40.75" (1,038 mm)
M - Runway Centerline:
74" (1,880 mm)
N - Outside Edge of Runways:
102" (2,592 mm)

Minimum Wheelbase

Rated Capacity:
230" (5,842 mm)
75% Capacity:
195" (4,953 mm)
50% Capacity:
165" (4,191 mm)
25% Capacity:
130" (3,302 mm)

Locking

Locking Positions:
13
Lock Spacing:
Every 4" (100 mm)

Power Unit

Motor:
220 VAC / 60 Hz. 1Ph.
Noise:
45 dB

Shipping

Weight:
6,748-lbs. (3,060 kg)
Dimensions:
266'' x 33'' x 37'' (6,756 mm x 838 mm x 940 mm)
