Karcher 9.841-343.0 : KM 150/500 R Bp + 2SB + STL + OHG + LTS

Write a Review
$83,935.71
SKU: 9.841-343.0
Series: SWEEPERS
Type: RIDE-ON
Category: Floor Sweepers
Power / Drive: 48 V / 10 kw / DC motor
Weight: lbs 5,650
Working speed: mph 5
Waste container capacity: gal 132
Adding to cart… The item has been added

Product Overview:
The Karcher 9.841-343.0 KM 150/500 R Bp + 2SB + STL + OHG + LTS is a premium battery-powered ride-on industrial sweeper designed for large-scale cleaning in demanding commercial, municipal, and industrial facilities. This configuration combines quiet, exhaust-free 48 V battery operation with two side brooms for expanded sweeping coverage, a rugged steel case battery, an overhead guard for added operator protection, and front/rear lights for improved visibility in low-light areas. Built for fine dust, coarse debris, sand, and heavy facility dirt, this KM 150/500 R sweeper helps warehouses, manufacturing plants, logistics hubs, airports, parking structures, schools, and public facilities clean large areas faster while reducing manual sweeping labor.

Key Product Features:

  • Product Type: Battery-powered ride-on industrial floor sweeper
  • Part Number: Karcher 9.841-343.0
  • Model: KM 150/500 R Bp + 2SB + STL + OHG + LTS
  • Category: Sweepers > Ride-On
  • Power Source: 48 V battery-powered operation for low-noise, exhaust-free sweeping
  • Configuration Includes: 2 side brooms, steel case battery, overhead guard, and front/rear lights
  • Main Sweeping Width: 47 in main broom width for high-output large-area cleaning
  • Working Width with 1 Side Brush: Approximately 59 in; dual side brooms provide expanded edge-to-edge sweeping coverage
  • Waste Container Capacity: 132 gal high-capacity hopper to reduce emptying stops during long cleaning routes
  • Filter Area: 75 ft² filter area for effective dust control in demanding sweeping conditions
  • Area Performance: Up to approximately 161,460 ft²/hr for productive facility cleaning
  • Machine Dimensions: Approximately 96 in L × 61 in W × 65 in H on related KM 150/500 R Bp platform listings
  • 2SB Dual Side Brooms: Improves debris pickup along walls, racks, curbs, corners, aisles, and wide open floor areas
  • STL Steel Case Battery: Durable battery package designed for rugged professional and industrial cleaning use
  • OHG Overhead Guard: Adds operator protection in warehouses, production areas, loading zones, and high-traffic facilities
  • LTS Front/Rear Lights: Improves visibility in dim warehouses, parking structures, outdoor yards, early-morning shifts, and low-light work zones
  • Three-Wheel Rear Steering: Supports maneuverability for a large industrial ride-on sweeper
  • Fully Hydraulic Drive and Sweeping System: Built for reliable performance in heavy-duty sweeping applications
  • Dustpan Sweeping Principle: Helps collect fine dust, sand, coarse dirt, and larger debris efficiently in one pass
  • Automatic Waste Container Closure: Helps keep collected debris contained during transport
  • Automatic Roller Brush Adjustment: Allows the main broom to adapt to uneven surfaces while helping reduce brush wear
  • Tool-Free Main Brush Replacement: Speeds routine maintenance and helps minimize equipment downtime
  • Redesigned Sweeping System: Helps reduce wear and supports efficient long-term operation

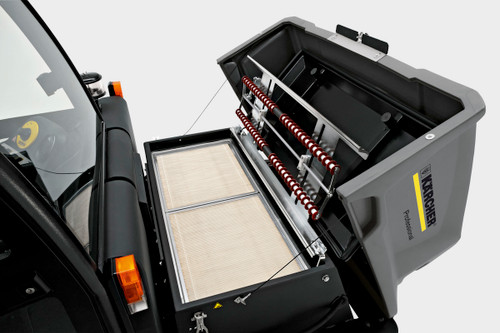

  • Dual Flat Pleated Filters: Supports cleaner exhaust air and reliable dust management in dusty environments
  • Push-Button Filter Cleaning: Dual scraper filter cleaning helps maintain airflow and sweeping performance
  • Low-Noise Operation: Well suited for indoor facilities, schools, universities, public buildings, and other noise-sensitive areas
  • Zero-Emission Cleaning: Battery operation makes it ideal for indoor environments where exhaust fumes are not acceptable
  • Heavy-Duty Applications: Suitable for warehouses, distribution centers, manufacturing plants, airports, logistics hubs, municipal facilities, parking structures, construction material sites, foundries, metalworking facilities, and large commercial properties
  • Operational Benefit: Helps reduce manual sweeping labor, improve dust control, increase cleaning productivity, and maintain safer, cleaner floors

Why Buy from ProQuip Solutions:
ProQuip Solutions helps commercial, municipal, and industrial customers source the right ride-on sweepers and floor care equipment with confidence. When you order the Karcher 9.841-343.0 KM 150/500 R Bp + 2SB + STL + OHG + LTS from ProQuip Solutions, you get dependable product sourcing, knowledgeable support, and a supplier focused on matching your facility with reliable equipment for demanding cleaning operations. Choose ProQuip Solutions for professional sweeping solutions that support productivity, uptime, and cleaner work environments.

Technical data

Working width with 1 side brush (in)59
Drive (V)48
Area performance (ft²/hr)193752
Waste container (gal)132
Filter area (ft²)75
Dimensions (L x W x H) (in)96 / 61 / 65
