GRACO D31255 : Husky 307 AC 3/8" NPT Standard Pump - PP Center Section - AC Seats - TPE Balls & TPE

Write a Review
$761.00
SKU: D31255
Fluid Type: Antifreeze
Fluid Type: Windshield wash fluid
Fluid Type: Water
Adding to cart… The item has been added
Description

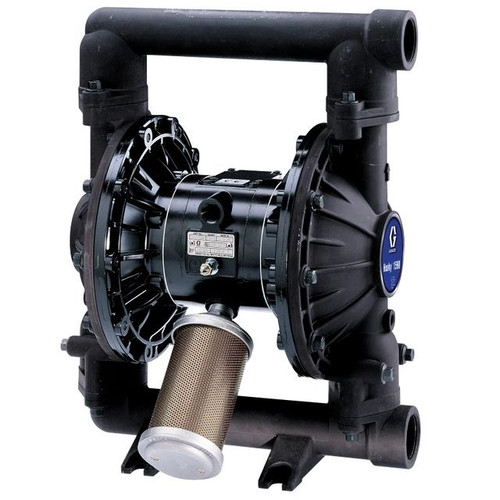

The Husky 307 air-operated diaphragm pump features a stall-free low pulsation air valve that provides a smooth and rapid changeover.



Typical applications include oil transfer and evacuation, fuel dispense and transfer, windshield wash solution dispense, and water and anti-freeze dispense. Some models UL-approved for use in pumping gasoline and gasoline/alcohol blends up to 10% ethanol, diesel fuel, fuel oil and lubricating oil.

  • Quick and easy assembly and disassembly design
  • Easy to service air valve and ball checks
  • Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
  • Split manifold option to pump multiple fluids without mixing
  • Every pump is tested prior to shipping
  • 3/8 in (9.52 mm) end porting
  • Delivery up to 7 gpm (26.5 lpm)
  • Easy-to-service air valve and ball checks




Specifications
Air Exhaust Port Size (in)3/8
Air Exhaust Port Thread GenderFemale
Air Inlet Size (in)1/4
Fluid Outlet Thread GenderFemale
Fluid Outlet Size (mm)9.525
Maximum Air Consumption (SCFM)5.5
Maximum Air Pressure (bar)7
Fluid Inlet Thread GenderFemale
Fluid Inlet Size (mm)9.525
Maximum Flow Rate (L/min)24.6
Maximum Fluid Pressure (bar)7
Fluid Inlet Size (in)3/8
Maximum Operating Temperature (°C)66
Maximum Operating Temperature (°F)150
Maximum Solid Size (cm)0.1588
Maximum Solid Size (in)0.0625
Maximum Solid Size (mm)1.5875
Minimum Operating Temperature (°C)4
Minimum Operating Temperature (°F)40
ModelHusky
diaphragm_compatible_materialTPE
Air Inlet Thread GenderFemale
Maximum Air Pressure (psi)100
Maximum Cycle Rate (CPM)330
Maximum Fluid Pressure (psi)100
