Graco 24V677 : SD DEF Pump Package, 5' Hose, Automatic Nozzle w/ Meter

Graco 24V677: SD DEF Pump Package, 5' Hose, Automatic Nozzle w/ Meter

SKU: 24V677

Key Product Features:

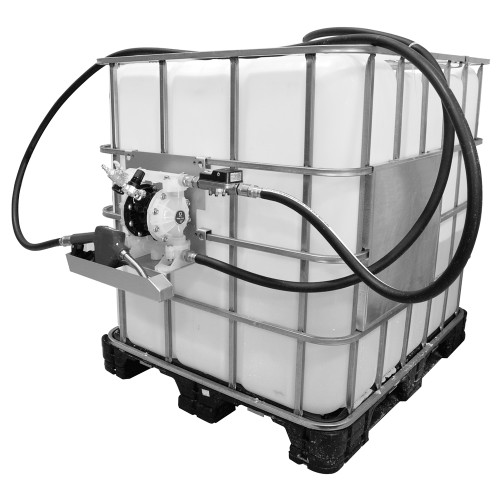

• Complete SD Blue DEF tote package: Includes an air-operated diaphragm pump, mounting bracket, LD automatic nozzle with stainless steel spout, LD DEF meter, dispensing hose, suction hose, stainless steel clamps and an air safety valve.
• Husky 515 air-operated pump: Uses Graco’s proven air-operated double-diaphragm technology to provide dependable fluid transfer, strong suction and reliable performance in professional service environments.
• Up to 15 GPM flow rate: Transfers Diesel Exhaust Fluid at rates up to 15 gallons per minute, or approximately 57 liters per minute, helping reduce vehicle and equipment refill times.
• Low-pressure pneumatic operation: Delivers strong transfer performance while operating with approximately 30 to 50 PSI of compressed air, making efficient use of an existing shop-air system.
• Five-foot suction hose: Includes a 5-foot, or approximately 1.5-meter, suction hose for drawing DEF from a compatible tote or bulk container.
• Automatic shut-off nozzle: Automatically stops DEF flow when the receiving reservoir reaches the appropriate level, helping reduce overfilling, spills and product waste.
• Stainless steel nozzle spout: Provides corrosion resistance and DEF compatibility for dependable dispensing in commercial automotive and industrial environments.
• Integrated LD DEF meter: Measures the amount of fluid transferred, helping operators track individual fills, monitor consumption and improve DEF inventory control.
• Tote-mounted configuration: Designed for installation on a compatible IBC tote, creating an organized bulk DEF dispensing station without requiring a separate floor-mounted pump stand.
• Stainless steel clamp fittings: Secure the suction and dispensing hoses while providing corrosion-resistant connections suitable for Diesel Exhaust Fluid handling.
• Mounting bracket included: Supports the pump and dispensing components, helping keep the system organized and accessible during regular use.
• Air safety valve included: Provides a means of controlling the compressed-air supply and supports safer installation, maintenance and pump operation.
• Smooth, low-pulsation operation: Graco’s modular air-valve design promotes rapid changeover and reduced pulsation for efficient dispensing with less downtime.
• Stall-resistant air-valve design: Helps maintain consistent pump cycling and dependable operation in demanding commercial environments.
• Bolt-through fluid-cover construction: Helps improve sealing integrity, reduce leakage and provide reliable long-term operation.
• Corrosion-resistant construction: Built with materials selected to withstand regular DEF service and support long equipment life.
• Up to 15 feet of suction lift: Provides useful installation flexibility when the pump must draw DEF from different container positions or elevations.
• 3/4-inch BSPP fluid connections: Uses 3/4-inch female BSPP inlet and outlet ports for integration with compatible DEF hoses, fittings and accessories.
• Maximum air pressure of 50 PSI: The package is rated for compressed-air operation up to approximately 50 PSI.
• Maximum fluid pressure of 50 PSI: Supports controlled commercial DEF dispensing at fluid pressures up to approximately 50 PSI, or 3.4 bar.
• Maximum cycle rate of 400 cycles per minute: Designed to support high-output transfer while remaining within the pump’s specified operating limits.
• Handles small suspended particles: The pump is rated for solids up to approximately 0.094 inch, although DEF should always be kept clean and free of contamination.
• DEF-compatible closed-system design: Dedicated fluid-contact components help maintain the chemical integrity of DEF and protect sensitive Selective Catalytic Reduction systems.
• Helps reduce contamination: Bulk tote dispensing minimizes repeated opening and pouring from individual containers, reducing exposure to dirt, dust and incompatible fluids.
• Improves service productivity: High-flow pneumatic transfer helps technicians replenish DEF reservoirs faster and return trucks, buses and equipment to operation sooner.
• Reduces packaged-container handling: Dispensing from a bulk tote can reduce repetitive lifting, opening and disposal of individual DEF jugs while minimizing shop clutter.
• Typical applications: Suitable for automotive and heavy-duty dealerships, fleet service facilities, mining operations, fast-lube centers, industrial plants and mobile lubrication trucks.
• Product specifications:
  • Product type: SD Blue air-operated DEF tote pump package
  • Compatible fluid: Diesel Exhaust Fluid
  • Pump type: Husky 515 air-operated double-diaphragm pump
  • Maximum flow rate: 15 GPM / 57 LPM
  • Recommended operating air pressure: Approximately 30–50 PSI
  • Maximum air pressure: 50 PSI
  • Maximum fluid pressure: 50 PSI / 3.4 bar
  • Maximum cycle rate: 400 cycles per minute
  • Maximum suction lift: Up to 15 feet
  • Suction hose length: 5 feet / 1.5 meters
  • Meter: LD DEF meter included
  • Nozzle: Automatic shut-off nozzle with stainless steel spout
  • Fluid inlet and outlet: 3/4-inch female BSPP
  • Mounting configuration: IBC tote mount
  • Manufacturer part number: 24V677
• Compressed-air requirement: Requires a properly sized, regulated and filtered compressed-air supply. Installation should include the appropriate air-control and pressure-relief components specified by Graco.
• Proper nozzle storage: Graco recommends draining residual DEF from the nozzle and storing it pointed downward in its holder. DEF exposed to air can crystallize and restrict the nozzle opening.
• DEF-only operation: Keep the pump, hoses, meter and nozzle dedicated exclusively to Diesel Exhaust Fluid. Introducing fuel, oil, coolant, water or other liquids can contaminate DEF and damage vehicle emission-control systems.
