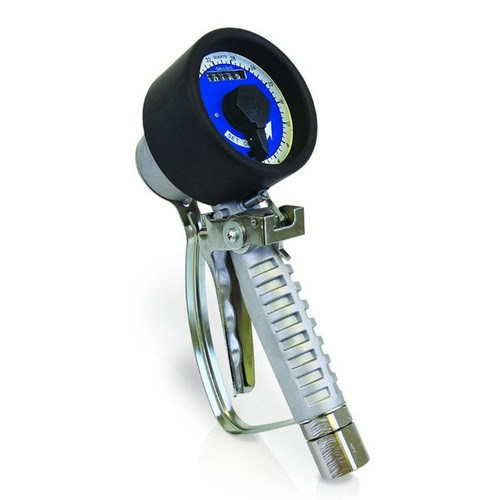

GRACO 24U947 : 60 Quart Preset Meter - Bare Extension - NPT

Write a Review
$797.00
SKU: 24U947
UPC: 633955691063
Extension Type: Bare
Type: Preset Meter
Adding to cart… The item has been added
Description

Mechanical meters are ideal for indoor or outdoor use in all size shops, typically handling applications in automotive dealerships, fast lube centers, and service shops. The meter featured is fitted with a multiple nozzle and extension options and are capable of pumping oil up to 8 gpm (30.2 lpm).



Typical applications include Automotive dealerships, Heavy-duty dealerships, Fast lube centers, Fleet service facilities, In-plant, Lube trucks, and Mining.

  • Preset meter automatically shuts-off flow when preset quantity has been dispensed
  • Impact-resistant shroud resists against scratches and protects knob and dial from damage
  • Dial and face design made simple, easy to read and set
  • Durable aluminum cast housing is balanced and lightweight for a comfortable grip
  • Built-in totalizer to manage material usage
  • Inlet 1/2 in. NPT with swivel
  • Measures fluid in quarts
  • Bare meter without extension or nozzle
  • 5 Year Warranty
Specifications
Dispense TypePreset
Display TypeMechanical
Extension TypeBare
Inlet Size (cm)1.27
Maximum Flow Rate (L/min)30
Maximum Operating Temperature (°C)70
Meter Accuracy (%)±1%
Inlet Size (mm)12.7
Inlet Size (in)1/2
Meter Pressure Loss (psi)30
Meter Pressure Loss (kPa)200
Meter Pressure Loss (bar)2
Maximum Working Pressure (psi)1500
Maximum Working Pressure (MPa)10
Maximum Working Pressure (kPa)10340
Maximum Working Pressure (bar)103.4
Outlet Size (in)0.75
Outlet Size (mm)12.7
Maximum Operating Temperature (°F)160
Metering Gun Weight (kg)1.58
Metering Gun Weight (lb)3.5
Minimum Operating Temperature (°C)-45
Minimum Operating Temperature (°F)-50
Valve TypeMetered
Outlet Size (cm)1.27
Trigger LockLocking
