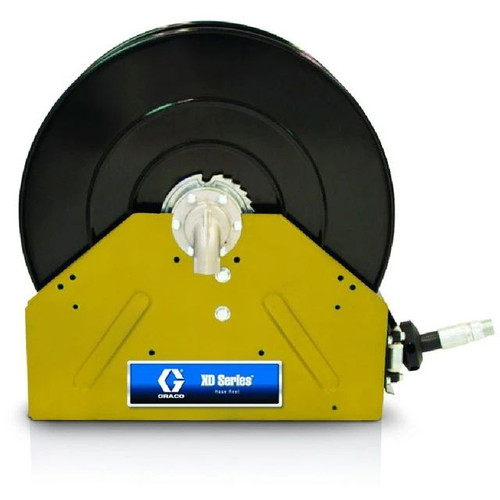

GRACO 24P343 : XD40 Oil Hose Reel - 3/4" x 75 ft - Yellow - 1500 PSI

Write a Review
$3,230.00
SKU: 24P343
Color: Yellow
Inlet Size: 1 in.
Fluid: Oil
Adding to cart… The item has been added
Description

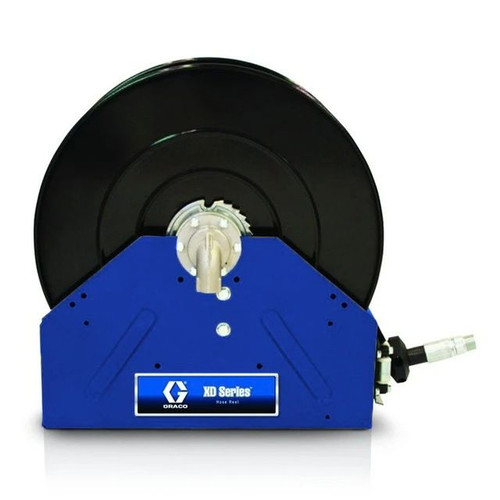

Graco’s XD40 and XD50 Series Hose Reels are engineered to take a beating and still reliably perform in harsh environments so it’s ready when you need it. Choose from several color options, thread types and hoses. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze and waste oil.

Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.

  • Extensive Hose Offering - Standard models come complete with factory installed hoses on the reel, large selection of optional reels to fit various applications
  • Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
  • Rugged and Durable Body - Heavy-duty welded spool and ribbed frame for extra strength and toughness over the long haul
  • Meets Worldwide Needs - Built standard with 90° elbow with NPT threads
Specifications
Recommended Fluid TypeOil
Series40
Reel Thread TypeNPT
Maximum Working Pressure (psi)1500
Inlet Size (mm)25.4
Inlet Size (in)1
includes_hoseYes
Hose Reel TypeReel with Hose
Hose Inside Diameter (mm)19.05
Frame TypeBox Frame
Dry Weight (lb)125
ModelXD
Outlet Size (in)3/4
Outlet Size (mm)19.05
Overall Height (in)26.13
Overall Height (mm)664
Overall Length (in)26.4
Overall Length (mm)671
Overall Width (in)16.54
Overall Width (mm)420
