GRACO 24F947 : SD Blue DEF Drum Package, 3/4" x 2 ft Suction Hose - Manual Nozzle

Write a Review
$1,925.00
SKU: 24F947
Series: SD
Fluid Type: DEF
Type: DEF Pump Packages
Adding to cart… The item has been added
Description

Graco's SD Series DEF solutions are built on versatility with a Husky 515 AODD pump delivering up to 15 gpm (57 lpm) and operating on as little as 30 to 50 psi (2.1 to 3.4 bar). Increasing productivity this powerful pneumatic design provides superior suction and lift in tanks, totes and drums. Whether a small garage or large dealership, Graco has a complete line of Diesel Exhaust Fluid (DEF) for every application, capable of higher outputs over longer runs.



Typical applications include automotive and heavy-duty dealerships, mining, service and fast lube centers, fleet service facilities, in-plant, and lube trucks.

  • Modular air valve with a stall-free, low-pulsation design for smooth and rapid changeover to increase efficiency and minimize downtime
  • Robust design with bolt-through fluid cover design to eliminate leaks and provide safety and reliability
  • Rugged construction built to resist corrosion for reliable performance and long life
  • High-efficiency air valves operate at a maximum of 28 scfm
  • Center and end porting options available
  • Up to 15 ft (4.57 m) of suction lift provides installation flexibility
  • 5 year warranty. See manufacturers website for details.
Specifications
For Use WithDEF
Fluid Outlet Thread GenderFemale
Fluid Outlet Size (mm)19.05
Fluid Inlet Thread GenderFemale
Fluid Inlet Size (mm)19.05
Fluid Inlet Size (in)3/4

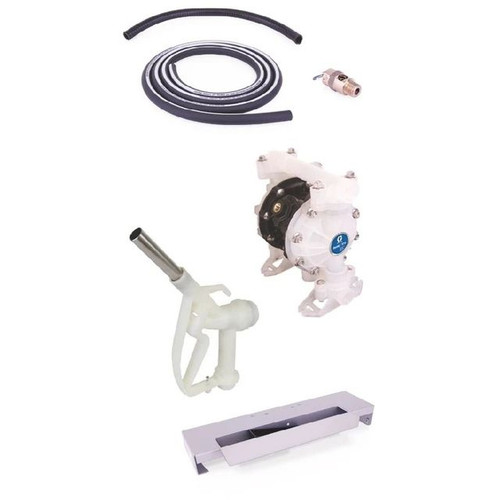

IncludesSD Blue Deluxe Drum Package, LD Manual Nozzle, Coupler Kit
Maximum Air Pressure (bar)4
Maximum Air Pressure (psi)50
Maximum Cycle Rate (CPM)400
Maximum Fluid Pressure (bar)3.4
Maximum Fluid Pressure (psi)50
ModelSD
Maximum Solid Size (cm)0.2381
Maximum Solid Size (in)0.09375
Maximum Solid Size (mm)2.3813
