Flo-Dynamics 98021 : TSDPS735 Inline & Dipstick ATF & Power Steering Fluid Exchanger

Key Product Features:

• Three fluid-service methods: Performs inline ATF exchanges, dipstick-tube ATF exchanges, and integrated power steering fluid exchanges from one machine.

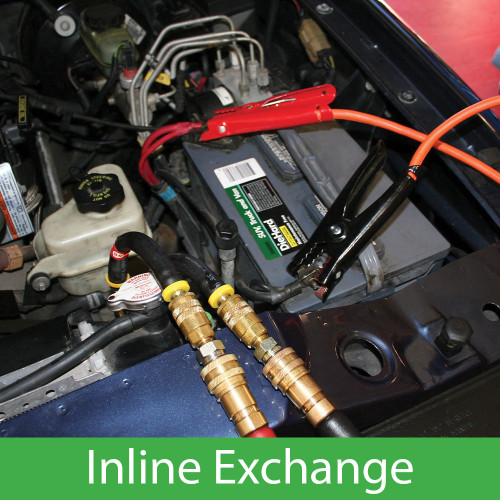

• Inline transmission service: Connects through the vehicle’s transmission cooler lines for controlled automatic fluid replacement.

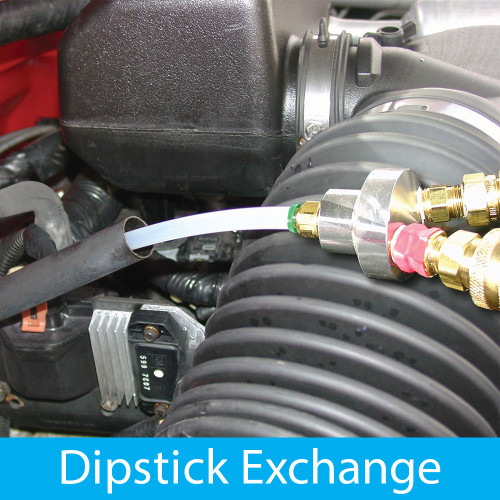

• Dipstick exchange capability: Provides an alternative service method for vehicles where cooler-line connections are inaccessible, difficult to reach, or otherwise unsuitable.
• Integrated power steering service: Allows technicians to remove contaminated hydraulic steering fluid and install fresh fluid without using a separate power steering exchanger.
• 35-quart ATF exchange capacity: Allows the operator to select any transmission fluid exchange amount from 1 to 35 quarts, supporting passenger cars, light trucks, commercial vehicles, buses, and other higher-capacity applications.
• Fully automatic operation: Completes the programmed fluid exchange with the push of a button, reducing technician involvement after proper setup.
• Powerful 2.5 GPM pump: Delivers rapid fluid movement for efficient service on low-flow vehicles and larger truck or bus transmission systems.
• Electronic fluid measurement: Patented sensor technology monitors the amount of fluid removed and replaced to help maintain the correct transmission fluid level.

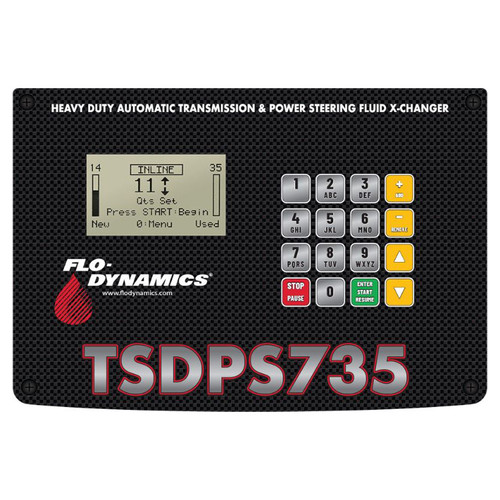

• Interactive LCD control panel: Provides clear screen prompts, operating information, service indicators, and progress updates to reduce guesswork during operation.
• Selectable exchange quantity: Lets technicians program the service volume according to the vehicle’s transmission capacity instead of using a fixed exchange amount.
• Push-button flow reversal: The patented flow diverter valve changes fluid-flow direction without requiring the service hoses to be manually reversed.
• Switch-hoses indicator: Alerts the technician when hose orientation must be changed during an inline transmission service.
• Add and remove fluid controls: Dedicated functions allow the operator to add or extract transmission fluid separately for accurate final-level adjustments.
• Transmission pan drain function: Removes fluid from the transmission pan to simplify transmission filter replacement and related maintenance.
• Pause function: Allows the active service to be stopped temporarily for a filter change, inspection, or other procedure and then continued afterward.
• Power-loss memory: Retains service information following a temporary electrical interruption, helping prevent the need to restart the exchange.
• Fluid totalizer: Tracks the total amount of fluid processed through the machine to support equipment-use monitoring and service records.
• Integrated voltmeter: Displays vehicle battery voltage so technicians can confirm that the unit is receiving an appropriate electrical supply.
• Dual inline filtration: Current manufacturer specifications list two inline 25-micron filters to help capture contaminants circulating through the transmission service equipment.
• Large-capacity fluid tanks: The 35-quart tank configuration supports high-volume services without frequent refilling or draining.
• Clear service hoses: Provide visual confirmation of fluid movement and condition during the transmission exchange.
• Standard adapter set included: Supplied with common adapters for convenient connection to a wide range of vehicle makes and models.
• Organized adapter storage: The onboard adapter rack drains into the waste tank, helping keep fittings dry, clean, and accessible.
• Durable rotocast construction: Polyethylene body panels and tanks are designed for professional shop environments and help reduce the risk of scratching nearby vehicles.
• Ergonomic operating height: Positions the controls and LCD display at a practical working level for regular technician use.
• Mobile shop design: Durable locking casters make the exchanger easy to reposition between service bays and secure during operation.
• Machine dimensions: Approximately 39 inches high, 24-3/4 inches wide, and 25 inches deep.
• Machine weight: Approximately 151 pounds.
• Professional applications: Well suited for automotive dealerships, transmission specialists, independent repair facilities, fleet maintenance departments, truck and bus service centers, quick-lube operations, and automotive training programs.
