BendPak RANGER RL-8500XLT : Combination Disc-Drum Brake Lathe w-Bench & Std Tooling - Super-Duty - Includes Setup & Training

Write a Review
$13,095.00
SKU: 5140237
Type: Brake Lathe
Adding to cart… The item has been added
Description



  • Extended capacity spindle can be used on brake drums 10” deep
  • Rear bushing location provides extra support for the arbor
  • Capable of truing even the heaviest drum rotors
  • In contrast to mechanically-driven transmission and gear boxes, the RL-8500XLT uses precision electric DC servo motors designed to meet the demanding requirements of industrial motion control
  • Quick-Change Adapter-Plus system with built-in springs eliminates the need for conventional bell clamps and cones
  • Works on all cars or trucks, both foreign and domestic, with hubless drums, rotors (center hole sized 2-5/32” – 4”) and composite rotors (center hole sized 4” – 6.25”)
  • The RL-8500XLT is equipped with features that help increase your service capability, like precision twin cutter tools and a quick drum-to-rotor changeover
  • Infinitely variable spindle and cross feed speed settings allow for quick rough and precision finish cuts
  • Simple ergonomic controls are designed for minimal operator movement
  • Legendary control makes unit easy to learn and master.
  • The RL-8500XLT maintains accuracy year after year thanks to ruggedly constructed components, like a hardened, precision ground spindle that resists grooving and makes boots a thing of the past
  • Massive tapered spindle bearings offer superior weight support during rotation
  • Our exclusive "splash-lube" oil-feed system supplies a constant flow of oil to the bearings making sure they provide years of trouble-free service
  • Serpentine belts provide a faster, quieter operation, reducing chatter and vibration
  • An independent cross-feed motor eliminates the need for plastic or bronze shear gears which are expensive and time consuming to replace
  • A convenient top storage tray means your popular adapters and tools are kept within short reach
  • Separate motors on the drum and rotor feed help maximize the main motor's efficiency

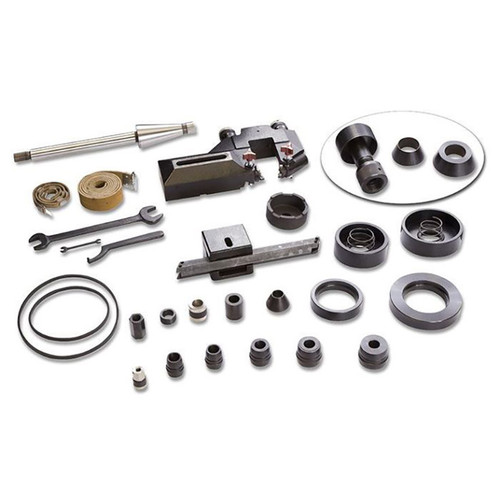

  • Our deluxe standard adapter package includes a Quick-Change hubless adapter system that makes mounting rotors and drums quick and easy
  • A variety of adapters let you machine all standard and composite rotors for foreign and domestic cars and light trucks
  • A 450-lb. cast iron body and a solid work bench reduces transient vibrations, ensuring a smooth uninterrupted surface finish with each pass
  • Easily change arbor speeds in seconds: choose 150 or 200 rpm, depending on the job
  • Positive rake cutter tip angle provides for a single-pass finish virtually every time, allowing you to complete your work faster than with inferior multi-pass lathes
  • Optional truck adapter kit available
Specifications
Motor Drive Unit
115 – 230 VAC, 50 – 60 Hz, 1 Ph, 20 amp
Max Rotor Thickness
2.5” (64 mm)
Max Rotor Diameter
17” (432 mm)
Brake Drum Diameter
6” – 28” (152 mm – 711 mm)
Max Load with Standard 1” Arbor
150 lbs. (68 kg)
Max Load with Optional 1-7/8” Truck Arbor
250 lbs. (113 kg)
Spindle Travel
9-7/8” (248 mm)
Spindle Speed
150 rpm – 200 rpm
Cross Feed Speed
(∞) 0 - .010” per revolution / 0 - 0.25 mm per revolution
Spindle Feed Speed
(∞) 0 - .020” per revolution / 0 - 0.55 mm per revolution
Overall Mounted Height
62” (1,575 mm)
Spindle to Floor (Mounted)
39-1/2” (1,003 mm)
Required Floor Space (W x D)
53” x 36” (1,347 mm x 914 mm)
Shipping Weight w/ Bench & Tools
730 lbs. (331 kg)
Shipping Dimensions
46'' x 45'' x 29'' (1,168 mm x 1,143 mm x 736 mm)
