BendPak RANGER RP-20HD : 20 Ton Shop Press - HD Commercial-Grade

Write a Review
$1,000.00
SKU: 5150059
Type: Shop Press
Adding to cart… The item has been added
Description
The heavy-duty RP-20HD delivers up to 40,000 lbs. of pressure to satisfy all your pressing needs. Two-stage pump action delivers incredible control, power and accuracy for a reliable press in commercial settings.
  • Ideal for pressing bearings, U-joints, etc.

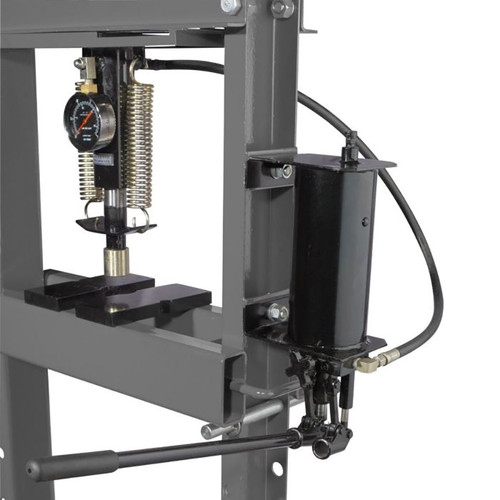

  • Hydraulic cylinder moves laterally for better versatility

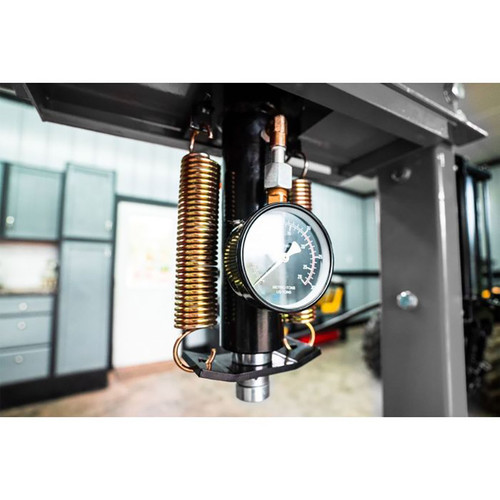

  • Integrated 4" diameter 20-ton pressure gauge
  • Independent two-speed hydraulic pump for maximum performance
  • Adjustable table height
  • Heavy steel construction
  • Includes two heavy-duty press plates
Specifications
Capacity
40,000 lbs. (18,144 kg)
Overall Height
60.25" (1,530 mm)
Overall Width
37" (940 mm)
Inside Width Between Rails
24" (610 mm)
Adjustable Table Height
7.5" - 36.25" (190 mm - 921 mm)
Base Dimensions
27.25" x 26" (692 mm x 660 mm)
Cylinder Stroke
5.5" (140 mm)
Shipping Weight
274 lbs. (124 kg)
Shipping Dimensions
61" x 13" x 15" (1,754 mm x 330 mm x 381 mm)
