BendPak APEX : AT26 Swing Arm Tire Changer - 12"-24" Rim Capacity - 110V-220V, 50/60HZ, 1-Ph.

Write a Review
$3,195.00
SKU: 5140351
Power: 110V
Type: Tire Changer
Style: Swing Arm
Phase: 1-Ph
Frequency: 50/60HZ
Adding to cart… The item has been added
Description

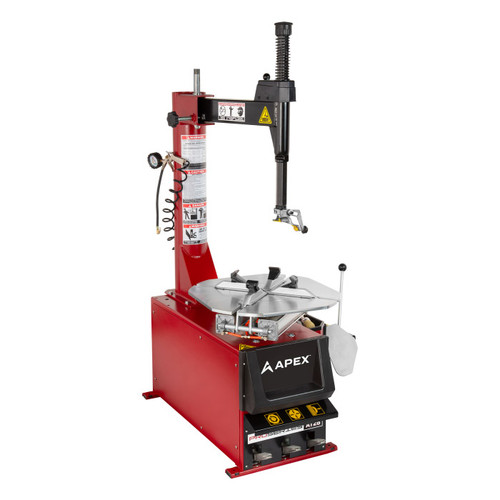

AT26 Swing Arm Tire Changer / 12-24 Inch Rim Capacity / 110V or 220V

The APEX AT26 is a high-performance swing arm tire changer designed for growing shops and serious garages that want commercial-grade capability without paying for features they do not need. Built to handle modern low-profile and light-truck tires with precision and control, the AT26 delivers dependable performance, excellent wheel protection, and long-term reliability backed by BendPak engineering and industry-leading warranty and support.

  • High-Torque Electric Turntable Drive
    Provides smooth, controlled rotation with reversible direction for precise mounting and demounting
  • High-Power Bead Breaking System
    Oversized pneumatic cylinder delivers fast, consistent bead loosening on stubborn tire assemblies.
  • Multi-Axis Adjustable Bead Breaker Blade
    Allows optimal approach angles for a wide range of wheel and tire combinations while reducing flex and wear.
  • Rigid Swing Arm Tower and Spring-Assisted Tool Shaft
    Ensures precise tool positioning with minimal deflection for improved repeatability and wheel protection.
  • Dual Mount and Demount Heads Included
    Includes both hardened steel and polymer heads for durability or delicate wheel finishes.
  • Wheel Protection Components Standard
    Plastic clamp covers and protective accessories prevent metal-to-metal contact on high-value wheels.
  • Brushless AC Motor
    Delivers consistent power with reduced heat, noise, and long-term maintenance.
  • Maintenance-Free Gearbox
    Sealed lubrication system ensures smooth operation and long service life without routine servicing.
  • Ergonomic Control Layout
    Upfront, intuitive controls improve workflow efficiency and reduce operator fatigue.
Specifications
Assist Arm
Not Included
Drive System Type
Electric / Air
Internal Rim Clamping
12" - 24" (305 mm - 610 mm)
External Rim Clamping
10" - 22" (254 mm - 559 mm)
Turntable Tire Width Capacity (Mounting)
15" (381 mm)
Bead Breaker Tire Width Capacity (Demounting)
14" (356 mm)
Max. Tire Diameter
50" (1,270 mm)
Product Dimensions
50" L x 38" W x 39" H
(1270 mm x 965 mm x 991 mm)
Motor
1.1KW 110/220V
Air Inflation Indicator
Hand-held inflation gauge
