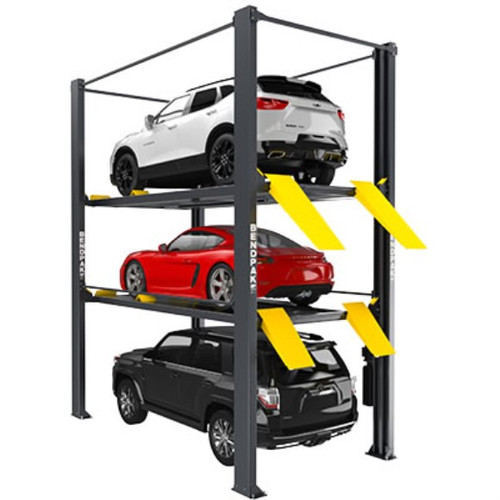

BendPak HD-973P : 9,000 & 7,000 LB Tri-Level Parking Lift

Write a Review
$22,395.00
SKU: 5175238
Capacity: 9000
Design: Four-Post
Type: Parking
Adding to cart… The item has been added
Description

The BendPak HD-973P Tri-Level Parking Lift is designed to maximize vehicle storage capacity while efficiently utilizing available parking space. Featuring 9,000 lb and 7,000 lb lifting capacities and a three-level parking configuration, this innovative lift allows users to store three vehicles in a single parking space, making it an ideal solution for facilities with limited parking availability.

Engineered with a patent-pending design and independent parking platforms, the HD-973P provides flexible vehicle storage at different heights. Its versatile configuration accommodates compatible sedans, SUVs, and full-size trucks, offering a practical solution for residential garages, commercial parking facilities, and automotive storage applications.

Ideal for car collectors, automotive dealerships, residential properties, and commercial parking garages, the BendPak HD-973P combines heavy-duty lifting performance with space-efficient vehicle storage.

Key Features:

  • 9,000 & 7,000 lb Lifting Capacities: Provide versatile lifting capabilities for compatible vehicles.
  • Tri-Level Parking Configuration: Allows storage of three vehicles within a single parking footprint.
  • Independent Parking Platforms: Enable flexible vehicle positioning at different heights.
  • Patent-Pending Design: Features an innovative multi-level vehicle storage configuration.
  • Space-Saving Construction: Maximizes parking capacity without expanding floor space.
  • Versatile Vehicle Compatibility: Suitable for compatible sedans, SUVs, and full-size trucks.
  • Adjustable Parking Heights: Allow vehicles to be positioned at preferred platform heights within operating limits.
  • Heavy-Duty Parking Lift Design: Built for demanding vehicle storage applications.
  • Residential and Commercial Use: Ideal for private garages, dealerships, and parking facilities.
  • Efficient Space Utilization: Helps increase vehicle storage density.
  • Multi-Vehicle Storage Solution: Provides a practical alternative to traditional single-level parking.
  • Flexible Parking Arrangements: Accommodates different vehicle storage requirements.

Technical Highlights:

  • Model: BendPak HD-973P
  • Lift Type: Tri-Level Parking Lift
  • Lifting Capacities: 9,000 lbs & 7,000 lbs
  • Parking Configuration: Three Levels
  • Vehicle Storage Capacity: Up to 3 Vehicles
  • Platform Design: Independent Platforms
  • Vehicle Compatibility: Compatible Sedans, SUVs, and Full-Size Trucks
  • Primary Applications: Residential Parking, Commercial Parking, and Vehicle Storage

The BendPak HD-973P Tri-Level Parking Lift combines heavy-duty lifting capabilities, independent platforms, and innovative three-level vehicle storage, making it an excellent solution for maximizing parking capacity while minimizing the required floor space.

Specifications

Style

Style:
Multi-Level Parking Lift

Top Platform

Lifting Capacity*
7,000 lbs. (3,175 kg)
*Max Capacity / Front Axle
3,500 lbs. (1,588 kg)
*Max Capacity / Rear Axle
3,500 lbs. (1,588 kg)
A - Overall Width
110.5" (2,807 mm)
B - Overall Length
241.75" (6,140 mm)
C - Height of Columns
157.75" (4,007 mm)
D - Drive-thru Clearance
86.5" (2,197 mm)
E - Maximum Rise
139.5" (3,543 mm)
F - Maximum Lifting Height
144" (3,6​67 mm)
G - Distance Between Columns
100" (2,546 mm)
H - Runway Width
19" (482 mm)
I - Width Between Runways
35" (889 mm) or 41" (1,041 mm)
J - Runway Length
180.25" (4,578 mm)
Min. Wheelbase @ rated Capacity 1
135" (3,429 mm)
Min. Wheelbase @ 75% Capacity 1
115" (2,921 mm)
Min. Wheelbase @ 50% Capacity 1
95" (2,413 mm)
Min. Wheelbase @ 25% Capacity 1
80" (2,032 mm)
Locking Positions
31
Locking Spacing
Every 4" (102 mm)
Lifting Time to Max. Rise
90 seconds
Motor
220 VAC / 60 Hz / 1 Ph

Bottom Platform

Lifting Capacity*
9,000 lbs. (4,082 kg)
*Max Capacity / Front Axle
4,500 lbs. (2,041 kg)
*Max Capacity / Rear Axle
4,500 lbs. (2,041 kg)
A - Overall Width
110.5" (2,807 mm)
B - Overall Length
241.75" (6,1 40  mm)
C - Height of Columns
157.75" (4,007 mm)
D - Drive-thru Clearance
86.5" (2,197 mm)
E - Maximum Rise
70" (1,7​83 mm)
F - Maximum Lifting Height
72.25" (1,​835 mm)
G - Distance Between Columns
100" (2,546 mm)
H - Runway Width
19" (482 mm)
I - Width Between Runways
35" (889 mm) or 41" (1041 mm) ​
J - Runway Length
165.5" (4,20​4 mm)
Min. Wheelbase @ rated Capacity 1
125" (3,175 mm)
Min. Wheelbase @ 75% Capacity 1
​105" (2,​667 mm)
Min. Wheelbase @ 50% Capacity 1
​85" (2,​159 mm)
Min. Wheelbase @ 25% Capacity 1
7​0" (1,​778 mm)
Locking Positions
13
Locking Spacing
Every 4" (102 mm)
Lifting Time to Max. Rise
50 seconds
Motor
220 VAC / 60 Hz / 1 Ph

Shipping

Shipping Weight:
5,296-lbs (2,402 kgs)
