Autel S16ALOR1TX : 16,000 LB Flush Mounted Bay Max Scissor Lift w ext. runway

Write a Review
$68,389.00
$64,969.00
(You save $3,420.00 )
SKU: S16ALOR1TX
UPC: 849438087296
Capacity: 16000
Type: Alignment
Design: Scissor
Mount: Flush
Adding to cart… The item has been added
Description
• 16,000 lb. capacity scissor alignment lift with bolt-on extended runways
• Engineered to support ADAS calibrations and precision alignment work within standard bay space
• Includes two 8,000 lb. air/hydraulic rolling jacks
• Flush-mount installation with open front and rear design for full alignment access
• Double-wide reinforced runways with structural “Z” rails for superior rigidity and accuracy
• Pneumatic locking stainless steel front radius plates with UMHW pocket protectors

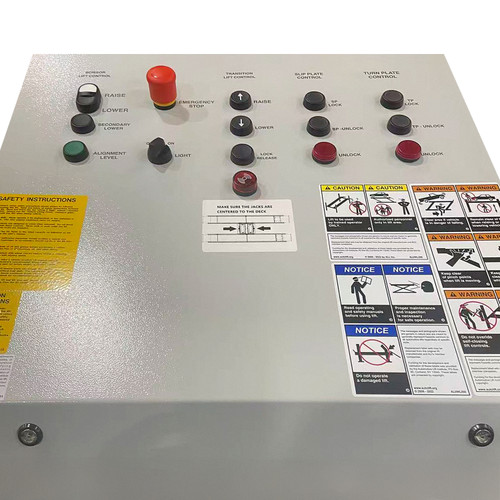

• Enclosed console with 220V single-phase power unit
• Integrated tire inflation kit at each wheel with center-mounted air outlet, and Shatterproof 24" LED lighting kit with automatic shutoff
• ALI Certified and North American made
• 3-Year Limited warranty on lift, 5-year parts warranty on jacks, 90 day warranty on accessories
Specifications
16K CAPACITY
CAPACITY16,000 lbs / 7.3 T
ALI
CERTIFICATION		Yes
STYLEOpen Front & Rear
A RAISED HEIGHT74"
(1,880mm)
B LOWERED HEIGHT0" (0mm) FLUSH
C OVERALL LENGTH
STANDARD		260 3/4"
(6,604mm)
OVERALL LENGTH
EXTENDED		275 3/4"
(7,004mm)
With Purchase of P/N: LPRE
D DECK LENGTH
STANDARD		203"
(5,156mm)
DECK LENGTH
EXTENDED		221"
(5,613mm)
With Purchase of P/N: X
E WIDTH BETWEEN
RUNWAYS		41"
(1,041mm)
F RUNWAY DECK
WIDTH		26"
(660mm)
G OVERALL WIDTH
FRONT/REAR		91 1/2"
(2,324mm)
H MAX COLUMN
HEIGHT		-
MIN. 4 WHEEL
ALIGNMENT WB		84"
(2,134mm)
MAX. 4 WHEEL
ALIGNMENT WB		164"
(4,165mm)
MIN. 2 WHEEL
ALIGNMENT WB
STANDARD		173"
(4,394mm)
MAX. 2 WHEEL
ALIGNMENT WB
EXTENDED		-
LIFT TIME58 Seconds
POWER
REQUIREMENTS		230V, 60Hz,
1PH, 30AMP
INCLUDED
JACKING BEAM		2 X 8,000 lbs / 3.6 T
SHIPPING WEIGHTS6,401
(2,903kg)
