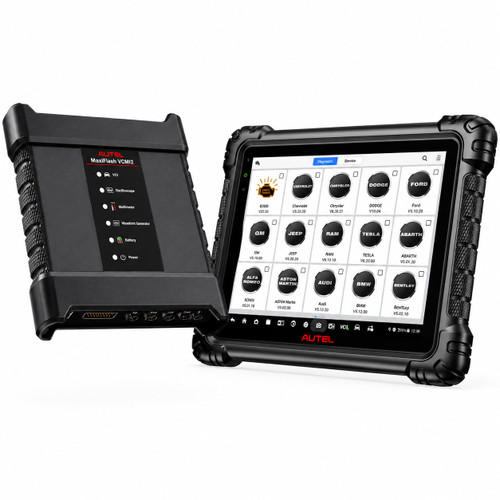

The Autel MaxiSYS MS919S2 Diagnostic Scanner is a next-generation professional automotive diagnostic tablet designed for advanced vehicle diagnostics, troubleshooting, and maintenance. Featuring an 11-inch touchscreen, Android 13 operating system, powerful 2.7 GHz octa-core processor, and enhanced MaxiFLASH VCMI2, this diagnostic scanner delivers fast, accurate, and comprehensive diagnostic performance.
Designed for professional automotive repair shops, dealerships, and diagnostic specialists, the MS919S2 provides extensive U.S., Asian, and European vehicle coverage with all-system diagnostics, bi-directional controls, ECU coding, adaptations, and advanced service functions. Its Topology 3.0 network analysis and enhanced live data capabilities help technicians identify vehicle faults and streamline complex diagnostic procedures.
Equipped with a 6-in-1 MaxiFLASH VCMI2 communication and measurement unit, the MS919S2 combines advanced vehicle communication, electrical testing, and diagnostic functionality in one powerful system.
Key Features:
- 11-Inch Touchscreen: Provides a large, intuitive display for efficient diagnostics.
- Android 13 Operating System: Delivers smooth navigation and responsive performance.
- 2.7 GHz Octa-Core Processor: Supports fast diagnostic processing and communication.
- 256 GB Storage: Provides ample space for diagnostic applications and vehicle data.
- MaxiFLASH VCMI2: Combines vehicle communication, J2534 pass-thru, oscilloscope, waveform generator, multimeter, CAN-bus testing, and Remote Expert functionality.
- Comprehensive Vehicle Coverage: Supports a wide range of U.S., Asian, and European vehicles.
- All-System Diagnostics: Reads and clears trouble codes across supported vehicle systems.
- Bi-Directional Controls: Enables active testing of compatible vehicle components.
- Topology 3.0: Provides dynamic vehicle network analysis and module communication monitoring.
- Advanced Live Data Analysis: Includes Live Data Fusion, reference sampling, parameter graphing, and split-screen analysis.
- 45+ Service Functions: Offers convenient access to maintenance and reset procedures.
- ECU Coding and Adaptations: Supports advanced vehicle configuration and programming functions.
- Security Gateway Access: Supports compatible Mercedes-Benz, Nissan, VW/Audi, and Stellantis vehicles, subject to required accounts or subscriptions.
- Digital Vehicle Inspection: Features a multi-point inspection application.
- MAX Voice Assistant: Provides hands-free tablet navigation.
- Wi-Fi 6 Connectivity: Supports faster and more reliable wireless communication.
- Expandable Capabilities: Supports optional ADAS calibration, videoscope, and battery testing accessories.
- Software Updates: Includes one year of free software updates.
- Limited Warranty: Backed by a one-year limited warranty.
Technical Highlights:
- Brand: Autel
- Model: MaxiSYS MS919S2
- Product Type: Advanced Automotive Diagnostic Scanner
- Display: 11-Inch Touchscreen
- Operating System: Android 13
- Processor: 2.7 GHz Octa-Core
- Storage: 256 GB
- Connectivity: Wi-Fi 6
- Vehicle Communication Interface: MaxiFLASH VCMI2
- Measurement Functions: 4-Channel Oscilloscope, Waveform Generator, Multimeter, and CAN-Bus Tester
- Programming Support: J2534 Pass-Thru
- Diagnostic Functions: All-System Diagnostics, Bi-Directional Testing, ECU Coding, and Adaptations
- Network Analysis: Topology 3.0
- Service Functions: 45+ Maintenance and Reset Functions
- Vehicle Coverage: U.S., Asian, and European Vehicles
- Optional Accessories: ADAS Calibration Package, MV108S/MV105S Videoscope, BT506 Battery Tester
- Software Updates: One Year Included
- Warranty: One-Year Limited Warranty
- Product Format: Physical Diagnostic Equipment
The Autel MaxiSYS MS919S2 Diagnostic Scanner combines advanced diagnostic technology, powerful hardware, comprehensive vehicle coverage, and versatile measurement capabilities to provide a complete solution for professional automotive diagnostics and vehicle maintenance.
| Item | Description | MaxiSys MS919S2 |
| Hardware | Storage | 12GB+256GB |
| Screen | 11" inch | |
| Â 2176*1600 | ||
| Android System | Android 13 | |
| Battery | 15000 mAh | |
| Camera | R:16M, F:16M | |
| WiFi | Dual wifi6e | |
| DC Fast Charging | DC | |
| Bluetooth | Support | |
| VCI | VCMI 2 | |
| VCMI 2 | Oscilloscope | 4 Channel |
| Multimeter | Support | |
| Protocal | Doip | Support |
| CanFD | Support | |
| J2534 | Support | |
| D-PDU | Support |
