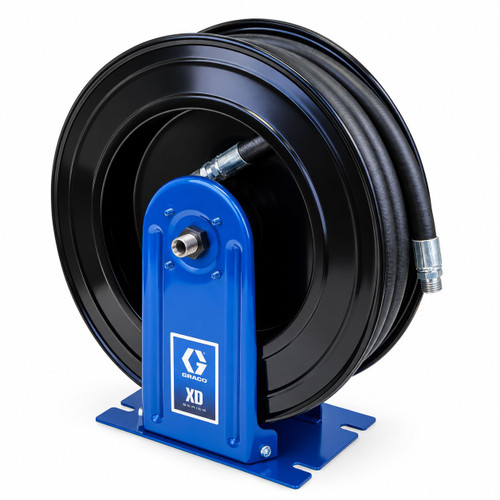

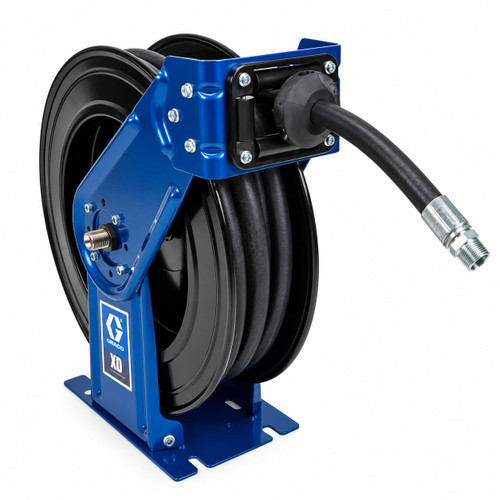

GRACO HEL015 : LDX DEF Hose Reel - 1/2" x 45 ft

Write a Review
$875.00
SKU: HEL015
Series: LDX
Type: Hose Reel
Fluid Type: DEF
Adding to cart… The item has been added
Description

Graco’s industrial-grade LDX hose reel offers incredible value for cost-conscious workshops. Its all-metal frame and specially crafted, long-lasting components provide consistent release and retraction.

Designed for smaller garages, independent repair facilities and industrial manufacturing environments.

  • Dual Pedestal Frame - Ribbed metal for increased stability and robustness.
  • External Swivel Housing - Quickly access swivel seal for faster repairs.
  • Ball Bearing Swivel - Swivel designed with internal ball bearings reduces friction and ensures smooth operation.
  • Adjustable Arm - Easily change to one of six arm positions to fit your application.
  • Large Hose Capacity with Small Profile - Compact design accommodates up to a 45 foot (14 meter) hose to meet a wide variety of application requirements.
Specifications
Recommended Fluid TypeDEF
Reel Thread TypeBSPT
Maximum Working Pressure (psi)150
Maximum Temperature (°F)158
Maximum Temperature (°C)70
Inlet Thread GenderMale
Inlet Size (mm)12.7
Inlet Size (in)1/2
includes_hoseYes
Hose Reel TypeReel with Hose
Hose Inside Diameter (mm)12.7
Frame TypeDual Pedestal
Dry Weight (lb)46.2
Minimum Temperature (°C)-40
Minimum Temperature (°F)-40
ModelLDX
Outlet Size (in)1/2
Outlet Size (mm)12.7
Outlet Thread GenderMale
Overall Height (in)19
Overall Height (mm)483
Overall Length (in)17.5
Overall Length (mm)445
Overall Width (in)9.4
Overall Width (mm)239
