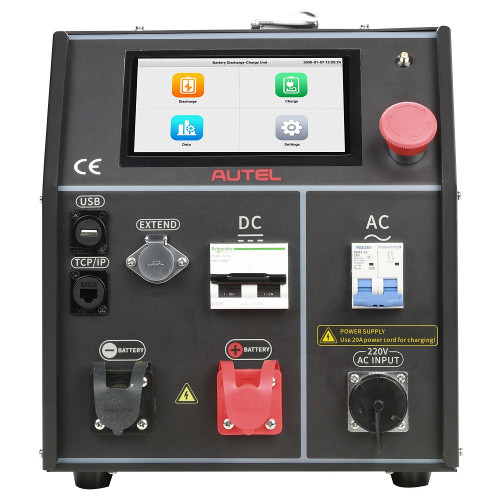

Autel MaxiEV CDT100 : HV Battery Discharge and Charge Unit

Key Product Features:

• Manufacturer model: MaxiEV CDT100.
• All-in-one high-voltage battery charging and discharging unit.
• Designed for lithium battery modules and battery packs.
• Charge-discharge voltage range: DC 2–285V.
• Supports discharge, charge and battery-activation operating modes.
• Maximum discharge current: 150A.
• Maximum discharge power: 7.2kW.
• Maximum charging current: 100A.
• Maximum charging power: 4.4kW.
• Cell-voltage measurement range: 0–5V.
• Cell-voltage resolution or listed accuracy: 0.001V.
• Supports constant-current discharge.
• Supports constant-power discharge.
• Multiple discharge modes help simulate different battery load conditions.
• Three-stage charging process includes constant-current charging.
• Constant-voltage charging helps complete the primary charging stage.
• Float charging supports efficient completion of the charging process.
• Optional activation mode allows repeated charge-and-discharge cycles.
• Users can configure charging and discharging rules and cycle quantities.
• Activation testing can help evaluate and improve usable battery-pack capacity.
• Real-time cell-voltage collection through CAN communication or physical sampling.
• Displays maximum and minimum individual-cell voltage.
• On-screen information is available in graphs, columns and report formats.
• Zoom-in and zoom-out functions support detailed data review.
• Large touchscreen interface provides clear test monitoring.
• Intelligent operating system and guided interface simplify battery maintenance.
• Supports capacity measurement during charging and discharging.
• Helps protect batteries against overcharging and excessive discharge.
• Warning protection for reversed battery connections.
• Protection against DC input overvoltage.
• Discharge-overcurrent protection.
• System-overtemperature protection.
• Additional warnings include fan failure and overcharge conditions.
• Automatically terminates testing when specified abnormal conditions occur.
• LCD notifications and audible alerts assist technicians with fault handling.
• Power supply: AC 110V or 220V.
• Dimensions: approximately 530 × 300 × 350 mm.
• Unit weight: approximately 23.4 kg.
• Suitable for direct battery charging and discharging before, during or after vehicle repairs.
• Helps collision shops reduce battery charge before placing vehicles in heated paint booths.
• Can discharge EV batteries to appropriate charge levels for transportation preparation.
• Suitable for battery storage maintenance and aftermarket battery-pack servicing.
• Useful for vehicle warehouses and salvage facilities managing stored high-voltage batteries.
• Discharging stored batteries can help reduce energy available during a potential thermal event.
• Main-unit configuration includes charging, discharging and data-acquisition systems.
• Standard equipment may include test cables, data-acquisition cables and an AC power cord.
• Additional supplied items may include a USB drive, user manual and carrying case.
• High-voltage battery service must be performed by trained technicians using appropriate personal protective equipment and manufacturer-approved procedures.
