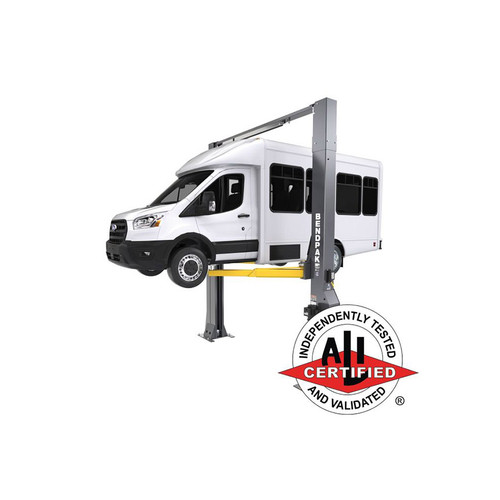

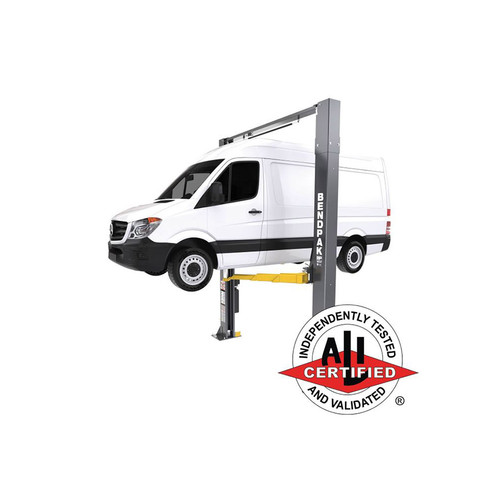

BendPak 20AP-192 : 20000 Super Duty 2-Post Lift 192" Height

Write a Review
$25,595.00
$23,550.00
(You save $2,045.00 )
SKU: 5175615
Capacity: 20000
Design: Two-Post
Type: Super-Duty
Overall Height: 193''
Overall Width: 168''
Adding to cart… The item has been added
Description

The top-of-the-line 20AP-192 delivers advanced technology, premium-grade materials, an innovative design, as well as a whopping 20,000 lb. lifting capacity. Unlike the regular 20AP, this lift offers an enhanced overall height of 193”, giving taller techs out there the room they need to get the job done as comfortably as possible.

  • Durable powder coat finish
  • Single-point safety release
  • Padded overhead safety shutoff bar
  • Drop-end arms provide a lower pad height
  • Dual hydraulic direct-drive cylinders
  • Electric / hydraulic HVLP power system
  • Self-lubricating dura-glide UHMW polyethylene bearing system
  • Safety locks in each column spaced every 3”
  • Automatic arm restraints withstand over 2000-pounds of side force
  • Heavy-duty ½” aircraft-quality equalizer cables
  • Oversized cable sheave diameter reduces cable fatigue
Specifications
Lifting Capacity
20,000 lbs. / 9,072 kg
Max. Capacity — Front Axle
10,000 lbs. / 4,536 kg
Max. Capacity — Rear Axle
10,000 lbs. / 4,536 kg
A - Max. Rise
76.25 in. / 1,934 mm
B - Lifting Height w/ Pad1
83 in. / 2,111 mm
C - Max. Lifting Height1
91.5 in. / 2,327 mm
D - Min. Height w/ Pad
8 in. / 206 mm
E - Height Overall
193 in. /

4,904 mm
F - Width Overall
168 in. / 4,267 mm
G - Outside Posts
149 in. / 3,785 mm
H - Inside Posts
126 in. / 3,199 mm
I - Drive-Thru Width
107.75 in. / 2,739 mm
J - Floor to Top Switch
186.5 in. / 4,738 mm
K - Front Arm Reach
35 in. to 62 in. (893 mm to 1,678 mm)
K - Read Arm Reach
35 in. to 62 in. (893 mm to 1,678 mm)
L - Base Plate Width
28 in. / 710 mm
M - Post to Base Plate
9.5 in. / 241 mm
Max. load per Lift Arm
5,000 lbs. / 2,268 kg
Motor2
220 VAC, 60 Hz, 1 Phase
Sound
<70 dB
