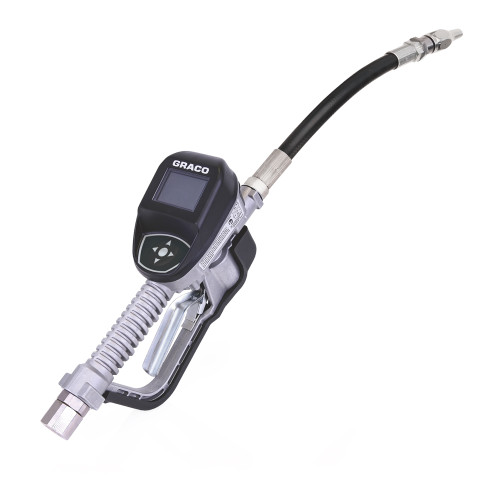

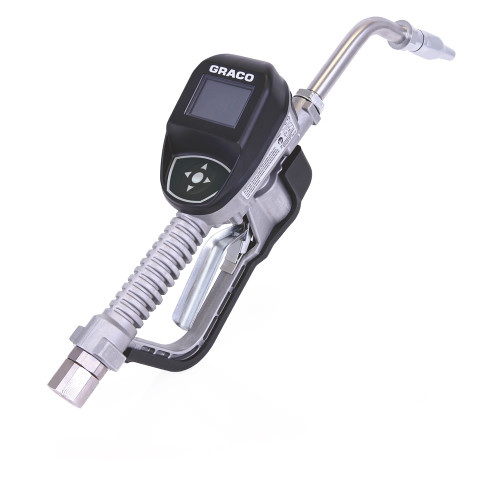

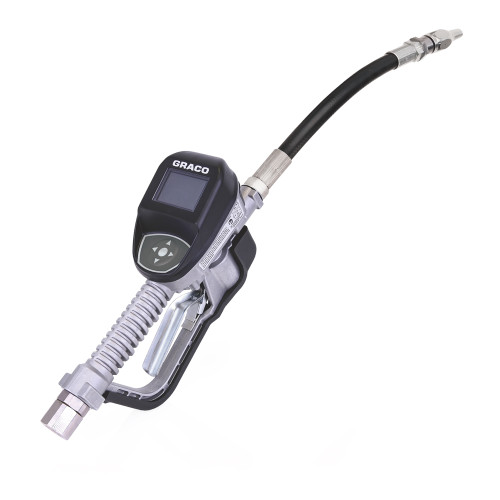

Graco 25N771 : SDP SERIES ELECTRONIC PRESET OIL BAR METER

Write a Review
$1,390.00
SKU: 25N771
UPC: 00755652869818
Type: Preset
Series: SD
Adding to cart… The item has been added
Description

Graco’s premium SD meters were designed from the ground up to provide the best user experience. These robust meters feature high flow, improved ergonomics and a large high-contrast LCD screen to make viewing dispense amounts easy in all lighting conditions.




Specifications
Dispense TypePreset
Display TypeElectronic
Extension TypeBare
Fluid Inlet Thread GenderFemale
Fluid Outlet Thread GenderFemale
IncludesBare Meter
Maximum Flow Rate (L/min)30
Maximum Operating Temperature (°C)70
Maximum Operating Temperature (°F)158
Maximum Recorded Dispense9999
Maximum Storage Temperature (°F)158
Maximum Storage Temperature (°C)70
Maximum Working Pressure (psi)1500
Maximum Working Pressure (kPa)10340
Maximum Working Pressure (bar)103.4
Meter Accuracy (%)±0.5
Overall Height (cm)14.6
Overall Height (in)5.75
Overall Height (mm)146
Overall Length (cm)33
Overall Length (in)13
Overall Length (mm)330
Overall Width (cm)9.5
Overall Width (in)3.75
Overall Width (mm)95
Meter TechnologyOval Gear
Metering Gun Weight (lb)5.3
Metering Gun Weight (kg)2.4
Minimum Flow Rate (GPM)0.25
Minimum Flow Rate (L/min)0.9
Warranty5 Years Structural Components, 3 Years Electronics, 1 Year Wear Parts
Trigger Protection TypeGuard
Trigger LockLocking
Minimum Operating Temperature (°F)4
Minimum Operating Temperature (°C)-16
Valve TypeMetered
Maximum Working Pressure (MPa)10.3
Product TypeMeter
ModelSD
