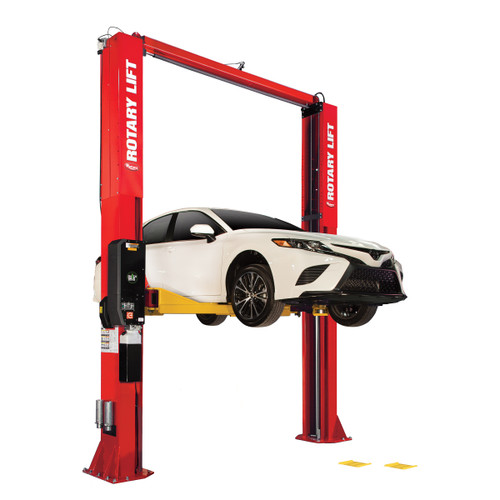

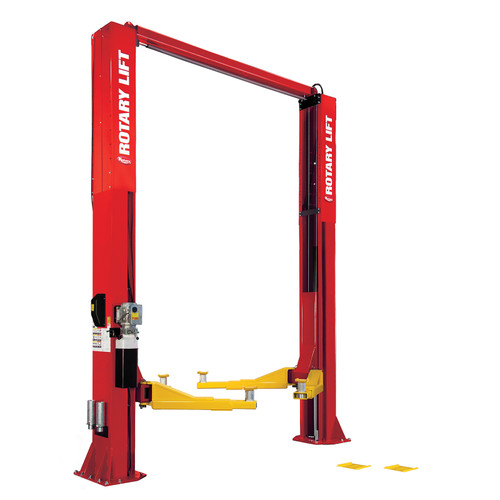

Rotary SPO16N20AL : 16,000 LB Symmetric 2-Post Lift - Low Ceiling - Cargo AV Arms

Write a Review
$26,197.00
SKU: SPO16N20AL
Capacity: 16000
Design: Two-Post
Configuration: Symmetric
Overall Height: 162''
Overall Width: 161''
Inside Columns: 127''
Colors: Red
Colors: Blue
Colors: Black
Colors: Gray
Country of Origin: USA
Arms / Adapters: Cargo
Arms / Adapters: All Vehicle
Shockwave: No
Selected 3 Color Options is
Adding to cart… The item has been added

The new SPO16/20 lift combines high capacity lifting, a low-profile stance, wider installation options and expanded arm reach possibilities. This is the one lift your shop can use to pick up anything that'll roll through the doors. Don't turn away customers and don't turn away profits. - Turn to a lift that'll pick up class 1 through class 5 vehicles. - Turn to a lift that has patented Trio arms so your technicians can easily position adapters where needed. - Turn to greater arm reach and service more with this versatile lift. - Service everything with this one lift! Features: - Overhead cables ensures proper equalization of the carriages, while providing an unobstructed floor - Patented TRIO Arms provide low clearance for cars, yet HD strength for HD Vehicles - Stackable adapters make contact to the vehicle quick and easy - The locking system engages every 4" and is fully accessible for maintenance - Original "Double S" Column Design - Air operated lock release - ALI Gold Certified (SPO20X)



Standard PowerSPO16N20T0BL | SPO16N20TORD
Shockwave EquippedSPO16U20T0BL | SPO16U20TORD
Lifting Capacity16,000 lbs.
Rise*76 1/4" - 78"
Overall Height15' to 16' 6"
Overall WidthNarrow: 12' 11" | Standard: 13' 5" | Wide: 13' 11"
Drive-thruNarrow: 105 11/32" | Standard: 111 11/32" | Wide: 117 11/32"
Inside ColumnsNarrow: 132 15/32" | Standard: 126 15/32" | Wide: 132 15/32"
Arm Reach Front & Rear Min/Max Reach33 1/4" - 70" | SPO16-AV Cargo Model 36 1/4" - 75"
Minimum Adapter Height4 3/4"
Maximum Adapter Height16"
Minimum Bay Size15' x 30'
Ceiling Height Minimum15' 2" to 16' 8" | Low Ceiling (LC) Model 13' 8" to 14' 8"
Motor/Voltage4 HP, 208-230V | With Shockwave 5 HP, 110V
Time of Rise/Descent81 / 20 seconds | With Shockwave 60 / 20 seconds
