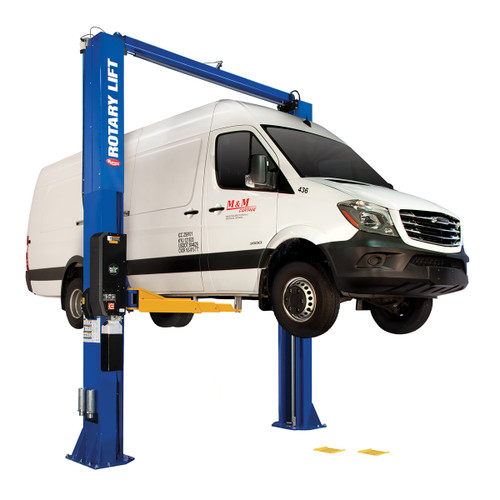

Rotary SPO16N20A0 : 16,000 LB Symmetric 2-Post Lift - Cargo AV Arms
The new SPO16/20 lift combines high capacity lifting, a low-profile stance, wider installation options and expanded arm reach possibilities. This is the one lift your shop can use to pick up anything that'll roll through the doors. Don't turn away customers and don't turn away profits. - Turn to a lift that'll pick up class 1 through class 5 vehicles. - Turn to a lift that has patented Trio arms so your technicians can easily position adapters where needed. - Turn to greater arm reach and service more with this versatile lift. - Service everything with this one lift! Features: - Overhead cables ensures proper equalization of the carriages, while providing an unobstructed floor - Patented TRIO Arms provide low clearance for cars, yet HD strength for HD Vehicles - Stackable adapters make contact to the vehicle quick and easy - The locking system engages every 4" and is fully accessible for maintenance - Original "Double S" Column Design - Air operated lock release - ALI Gold Certified (SPO20X)
Â
| Standard Power | SPO16N20T0BL | SPO16N20TORD |
| Shockwave Equipped | SPO16U20T0BL | SPO16U20TORD |
| Lifting Capacity | 16,000 lbs. |
| Rise* | 76 1/4" - 78" |
| Overall Height | 15' to 16' 6" |
| Overall Width | Narrow: 12' 11" | Standard: 13' 5" | Wide: 13' 11" |
| Drive-thru | Narrow: 105 11/32" | Standard: 111 11/32" | Wide: 117 11/32" |
| Inside Columns | Narrow: 132 15/32" | Standard: 126 15/32" | Wide: 132 15/32" |
| Arm Reach Front & Rear Min/Max Reach | 33 1/4" - 70" | SPO16-AV Cargo Model 36 1/4" - 75" |
| Minimum Adapter Height | 4 3/4" |
| Maximum Adapter Height | 16" |
| Minimum Bay Size | 15' x 30' |
| Ceiling Height Minimum | 15' 2" to 16' 8" | Low Ceiling (LC) Model 13' 8" to 14' 8" |
| Motor/Voltage | 4 HP, 208-230V | With Shockwave 5 HP, 110V |
| Time of Rise/Descent | 81 / 20 seconds | With Shockwave 60 / 20 seconds |
