Rotary SPOA10N20M0 : 10,000 LB Asymmetric 2-Post Lift - All Vehicle

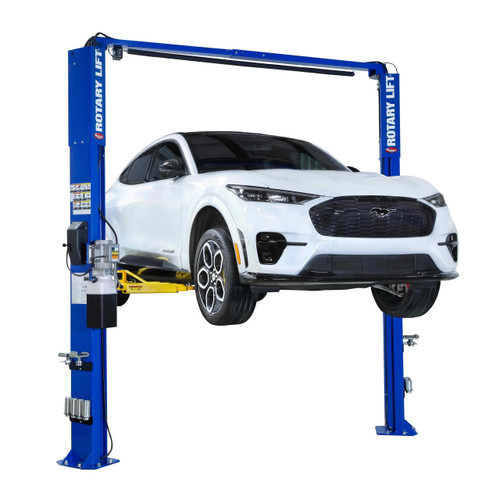

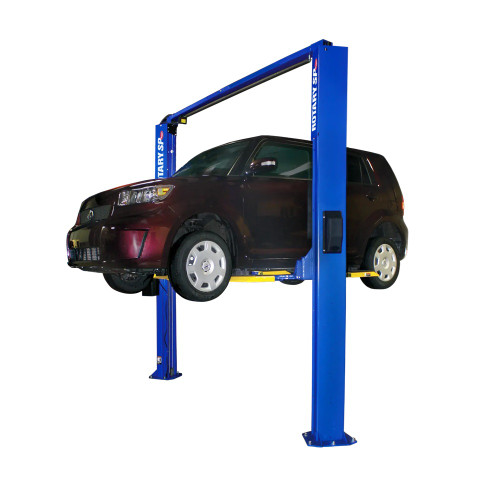

Two-Post Asymmetric Lift with All-Vehicle Lift Arms
Capacity: 10,000 lbs.
Introducing the ONE LIFT to service them all! The next evolution in vehicle lift technology has arrived. Accommodate all vehicle types under 10,000 lbs. with the industry’s original and best-selling asymmetrical lift, now featuring Rotary’s NEW All-Vehicle (AV) Lift Arms. Â

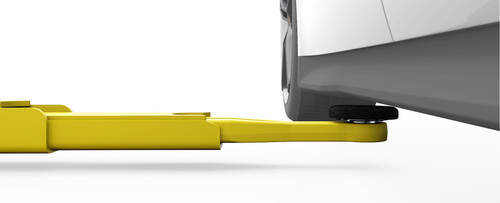

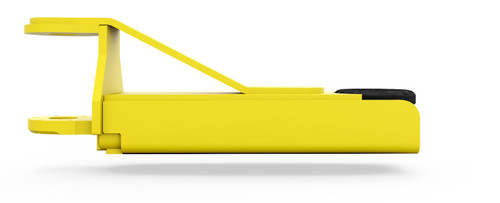

These revolutionary, patent-pending arms provide technicians the ability to lift and service practically all roadgoing vehicles on ONE LIFT (within the lift’s rated capacity), including:Â
- Battery ElectricÂ
- Exotic Low Profile  Â
- Truck FrameÂ
- Unibody Cars & SUVsÂ
*Comes standard with adjustable round, truck and stackable adapter extensions
Specifications
SPECIFICATIONS | LIFT MODELS |
STANDARD | SPOA10N20M0BL |
SHOCKWAVE | SPOA10N20M0BL |
| MAX RISE*   STANDARD SHOCKWAVE | 81 1/2″ 84 1/2″ |
| Overall Height | 11′ 11 1/2″ with SHOCKWAVE Power: 12′ 5 1/2″ |
| Overall Width | 11′ 5/2″ |
| Drive-Thru Clearance | 95 1/4″ |
| Inside Columns | 107 1/4″ |

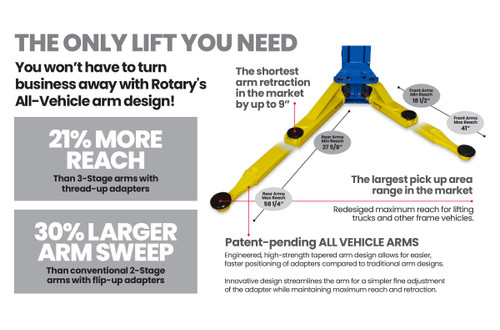

| Front Arm Reach: Min/Max | 18 1/2″ / 41″ |
| Rear Arm Reach: Min/Max | 27 5/8″ / 58 1/4″ |
| Min Adapter Height | 3 3/8″ |
| Speed of Rise | Standard Power: 45 seconds with SHOCKWAVE Power: 25 seconds** |
| Speed of Descent | Standard Power: 40 seconds with SHOCKWAVE Power: 19 seconds** |
| Ceiling Height Minimum | 12′ /12′ 6″ with SHOCKWAVE Power |
| Min. Bay Size | 12’x24′ |
* Rise measures the highest position of the adjustable adapters with use of supplied adapter extensions from floor to full cylinder stroke.
**Actual rise and descent times vary depending on vehicle weight.
Heights and widths reflect standard settings. 2 post lift standard colors are red, blue and black.
