Rotary SPOA10N1500 : 10,000 LB Asymmetric 2-Post Lift - 2 Stage Flip Up Adapters
Write a Review
Write a Review
Rotary Lift

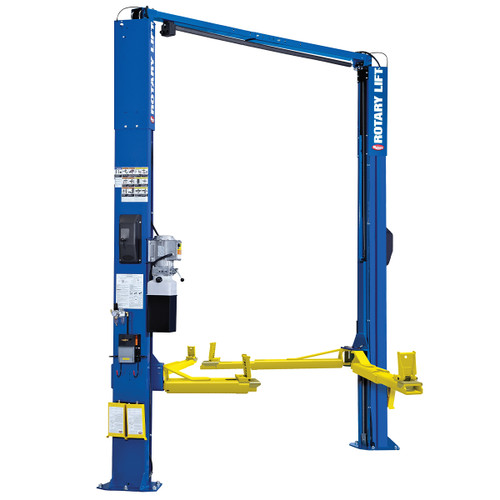

Rotary SPOA10N1500 : 10,000 LB Asymmetric 2-Post Lift - 2 Stage Flip Up Adapters
$7,259.00
SKU:
SPOA10N1500
Capacity:
10000
Design:
Two-Post
Configuration:
Asymmetric
Overall Height:
144''
Overall Width:
138''
Inside Columns:
107''
Colors:
Red
Colors:
Blue
Colors:
Black
Country of Origin:
USA

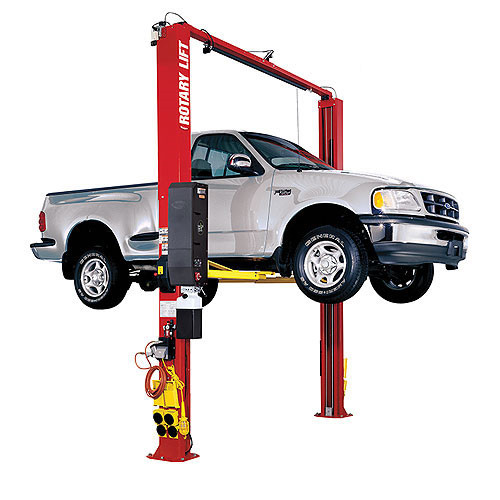

The world’s best selling asymmetrical lift now redesigned to service a broader range of vehicles - with one innovative arm design! True Asymmetrical Lifts are rotated 30° allowing maximum door opening for improved access to vehicle interior.
Features:
- Patented two-piece, three-stage arm
- Vehicle Spotting Speed & Ease
- Performance tested to 20,000 lift cycles
- True asymmetrical rotated column design
- ALI Gold Certified (SPOA10TrioX)
Â
| Max rise (standard) | 81 1/2" |
| Max rise (Shocwave) | 84 1/2" |
| Overall Height | 11' 11 1/2" (with Shockwave Power: 12' 5 1/2") |
| Overall Width | 11' 5 1/2" |
| Drive-Thru Clearance | 95 1/4" |
| Inside Columns | 107 1/4" |
| Front Arm Min/Max | 18 1/2" / 41" |
| Rear Arm Min/Max | 27 5/8" / 58 1/4" |
| Min Adapter Height | 3 3/8" |
| Speed of Rise | Standard Power: 45 seconds with Shockwave Power: 25 seconds |
| Speed of Decent | Standard Power: 40 seconds with Shockwave Power: 19 seconds |
| Ceiling height required | 12' / 12' 6" with Shockwave Power |
| Min Bay Size | 12'x24' |
